Overview of this zmct103c 10A Current Transformer

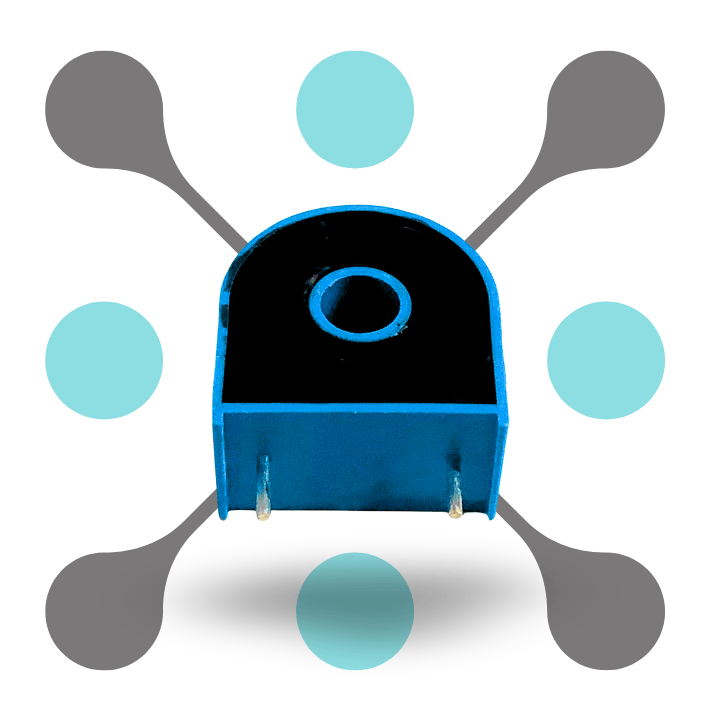

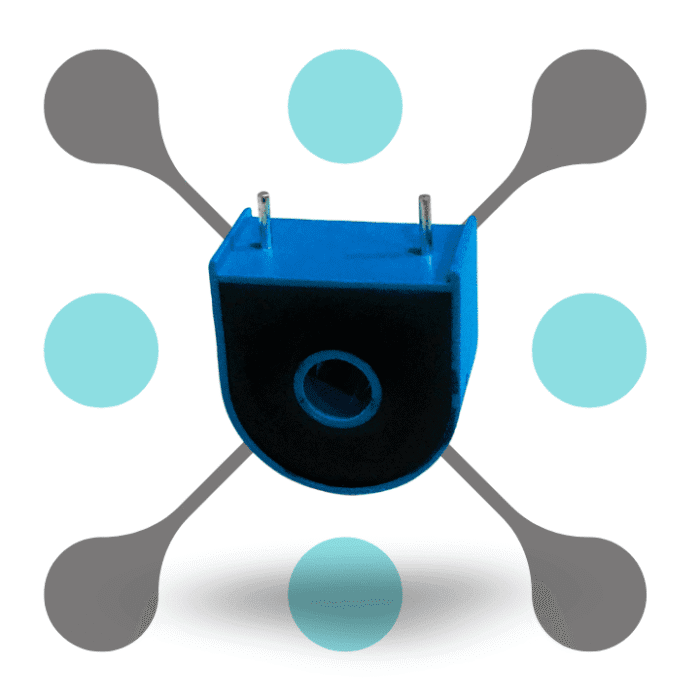

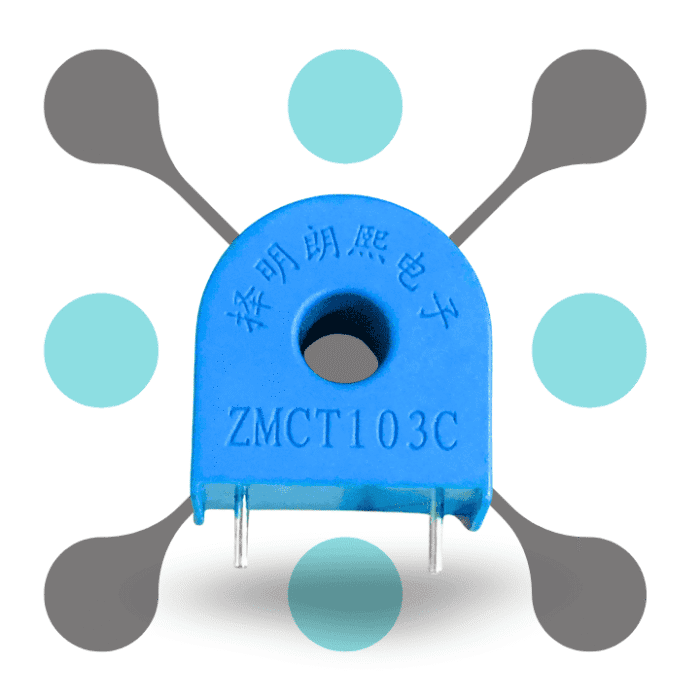

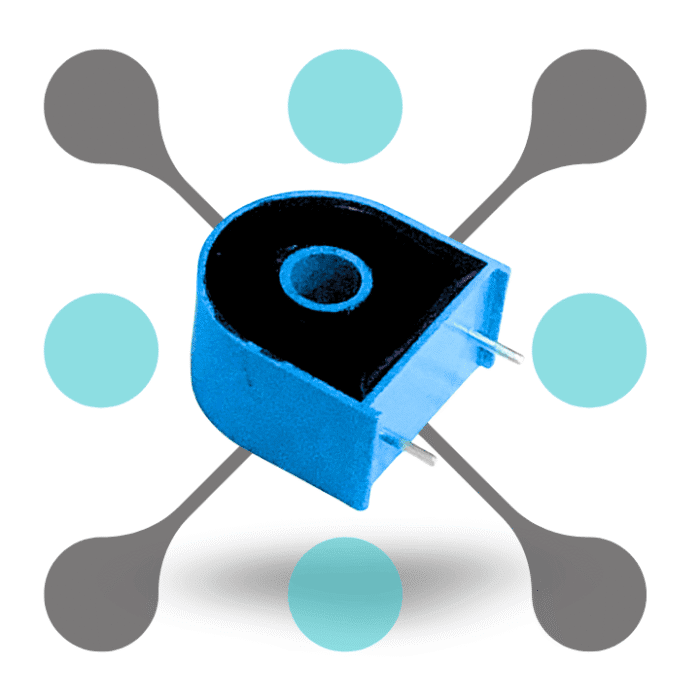

Introducing Roboway ZMCT103C 10A Current Transformer with 4500 volts isolation voltage for precise current measurement. This compact current sensor is designed to accurately monitor electric current up to 10 amps. With its ZMCT103C 10A Current Transformer you can track and analyze electric usage easily.
The ZMCT103C Current Sensor feature a sturdy built for durability and stability in various environment. Its compact size and easy to install design make it perfect for a wide range of device. This transformer also use to monitor power use or use it for protection system.
Designed for versatility and efficiency, the ZMCT103C 10 Ampere Current Transformer is perfect for both DIY project and professional engineers. Its user friendly interface also help to simplify setup and operation for easy monitoring. Enjoy precise measurement and reliable performance with this compact current sensor.
Features
- High current measurement: The ZMCT103C Current Transformer can measure up to 10 amperes. And it enable accurate monitor of moderate to high current circuit and load.
- Compact design: With its compact size, the transformer is perfect for less space device & it also allow for easy integration into small electronic project.
- Isolation: The transformer provides electrical isolation between the primary and secondary circuit. This ensure safety and prevent electric interference between connected devices.
- PCB mounting: Designed for PCB mounting, the transformer offers convenient integration into circuit design. This saves space and simplify assembly in electronic project.
- Wide frequency range: The transformer operates over a wide frequency range, making it suitable for diverse applications. This ensures compatibility with different power systems and equipment.
- Accuracy: Featuring high accuracy, the transformer delivers precise measurement results. This ensures reliable monitoring of current levels for control and protection purposes.
- Versatile applications: The ZMCT103C Current Transformer is suitable for various applications including power monitoring, energy metering, and industrial control systems.
Specification
| Specification | Details |
|---|---|
| Model | ZMCT103C |
| Permissible Error | -0.2% ≤ +0.2% |
| Input Current | 0-10 Ampere (50Ω) |
| Rated Output Current | 5mA at Input 5 Ampere |
| Turns Ratio | 1000:1 |
| Phase Angle Error | Input 5A, Sampling Resistor 50Ω |
| Accuracy Class | Class 0.2 |
| Linearity | ≤0.2% |
| Lead Spacing Pitch | 11mm |
| Isolation Voltage | 4500 Volts |
| Encapsulation | Epoxy |
| Installation | PCB Mounting |
| Pin Length | 3mm |
| Working Temperature | -40 to +85 degrees |
| Approximate Weight | 10gm |
| Height | 18mm |
| Width | 18mm |
| SKU | RW-924 |
