Description

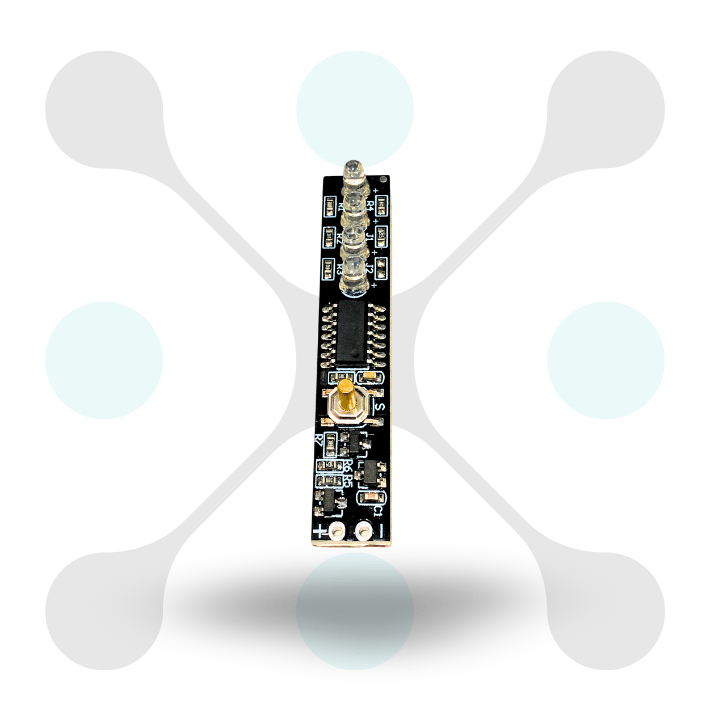

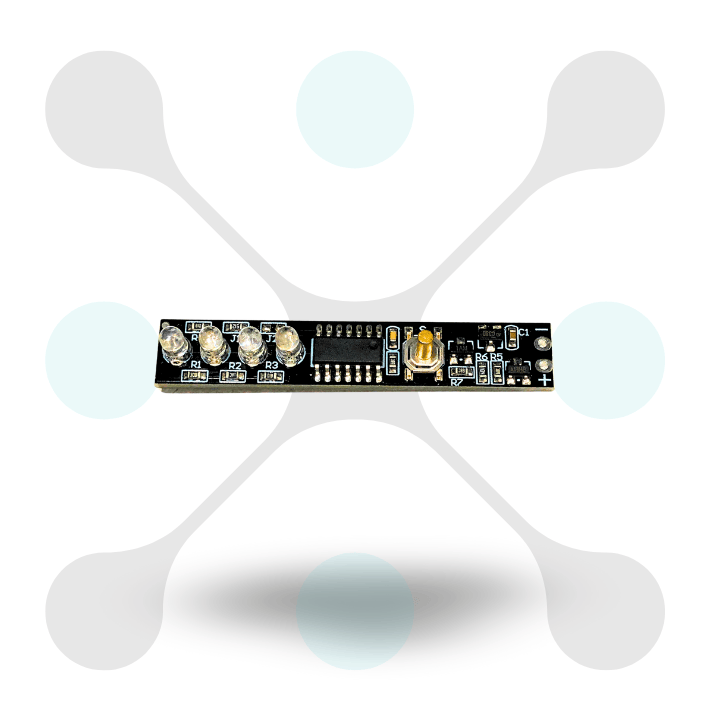

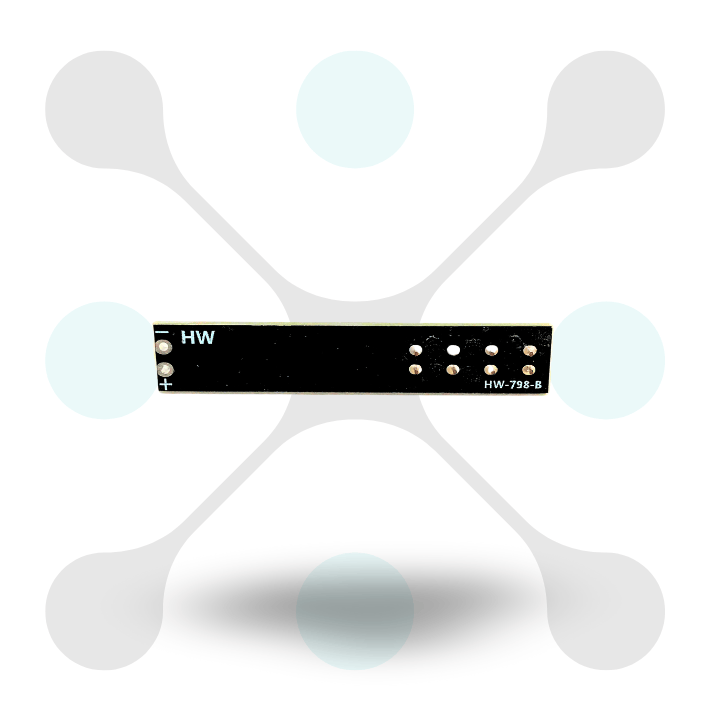

18650 Low-Power Lithium Battery Polymer 12V 4-Segment Battery Indicator Indicator Board is a battery power detection display board with buttons to realize the on-off function. Low power consumption state in shutdown state. Hw-798-b-1 is a series of lithium battery detection. The product is equipped with a key. After a short press, it will start and display the current power, and it will shut down after 5 seconds. Long press the button for more than 2 seconds in the off state to turn on and display the current power, and turn off after 5 minutes. Power on state, you can directly shut down through the button.
The algorithm of power filter and the algorithm of eliminating chattering at a critical point of the conversion between adjacent lamps are programmed. For a single lithium battery, for example, the turning point voltage of 3-grid lamp and 2-grid lamp is 3.75V. If the voltage happens at this point, the lamp will jump back and forth between 2-grid and 3-grid. The product adds a critical point dithering elimination algorithm to avoid this problem.
Specifications of 18650 Low-Power Lithium Battery Polymer 12V 4-Segment Battery Indicator Indicator BoardĀ :
- colour: black
- Material: PCB
- size: 50x9x8mm
- type: 4-String / 2-String / 3-String / 1-String
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Package Contains :
1 x 18650 Low-Power Lithium Battery Polymer 12V 4-Segment Battery Indicator Indicator Board
