Description

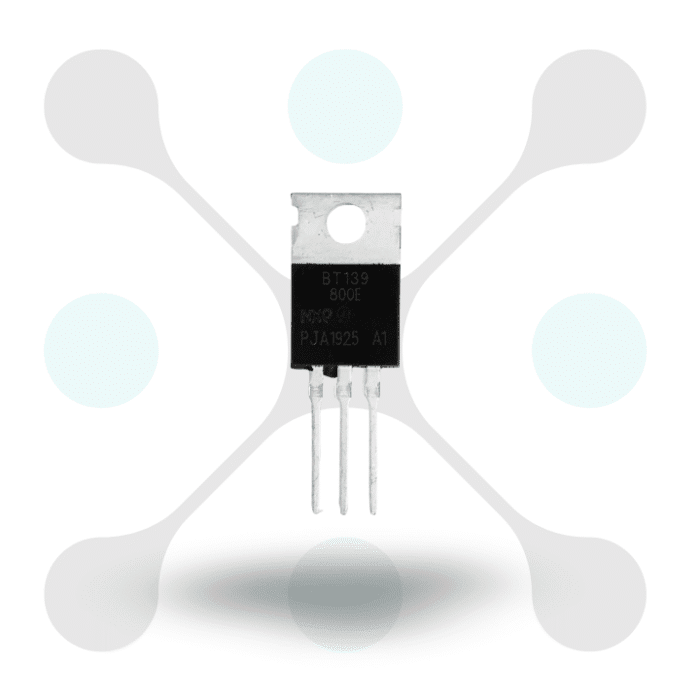

Overview of this BT139 800E IC
Features
- High current capability: This BT139 800E IC can handle up to 16A of regular current for robust power control. Suitable for high current application and load switching.
- High voltage rating: It also support a maximum off state voltage of 800V for reliable performance. Ideal for use in high voltage circuit and system.
- Low gate trigger current: Requires a low gate trigger current for easy control. Enhances efficiency in triggering and switching operations.
- Sensitive gate: This BT139 800E IC feature a sensitive gate for improved triggering at low current. Ensures reliable operation in low-power control circuits.
- TO-220 package: It also comes in a TO-220 package for efficient heat dissipation. Simplifies mounting and integration into various designs.
Specification
| Specification | Description |
|---|---|
| Type | Triac |
| Voltage Rating (VDRM) | 800V |
| Gate Trigger Voltage (Vgt) | 1.5V (maximum) |
| Gate Trigger Current (Igt) | 5mA (maximum) |
| Holding Current (Ih) | 10mA (maximum) |
| On-State Current (It) | 16A (RMS) |
| Peak Non-Repetitive Surge Current (Itsm) | 140A (10ms) |
| Off-State Leakage Current (Id) | 0.5mA (maximum) at VDRM |
| On-State Voltage (Vtm) | 1.5V (maximum) at It = 22A |
| Critical Rate of Rise of On-State Current (di/dt) | 50A/µs |
| Junction to Ambient Thermal Resistance (RθJA) | 60°C/W |
| Junction to Case Thermal Resistance (RθJC) | 2.2°C/W |
| Package Type | TO-220AB |
| Operating Temperature Range | -40°C to +125°C |
| Mounting Type | Through Hole |
| SKU | RW-IC0088 |
