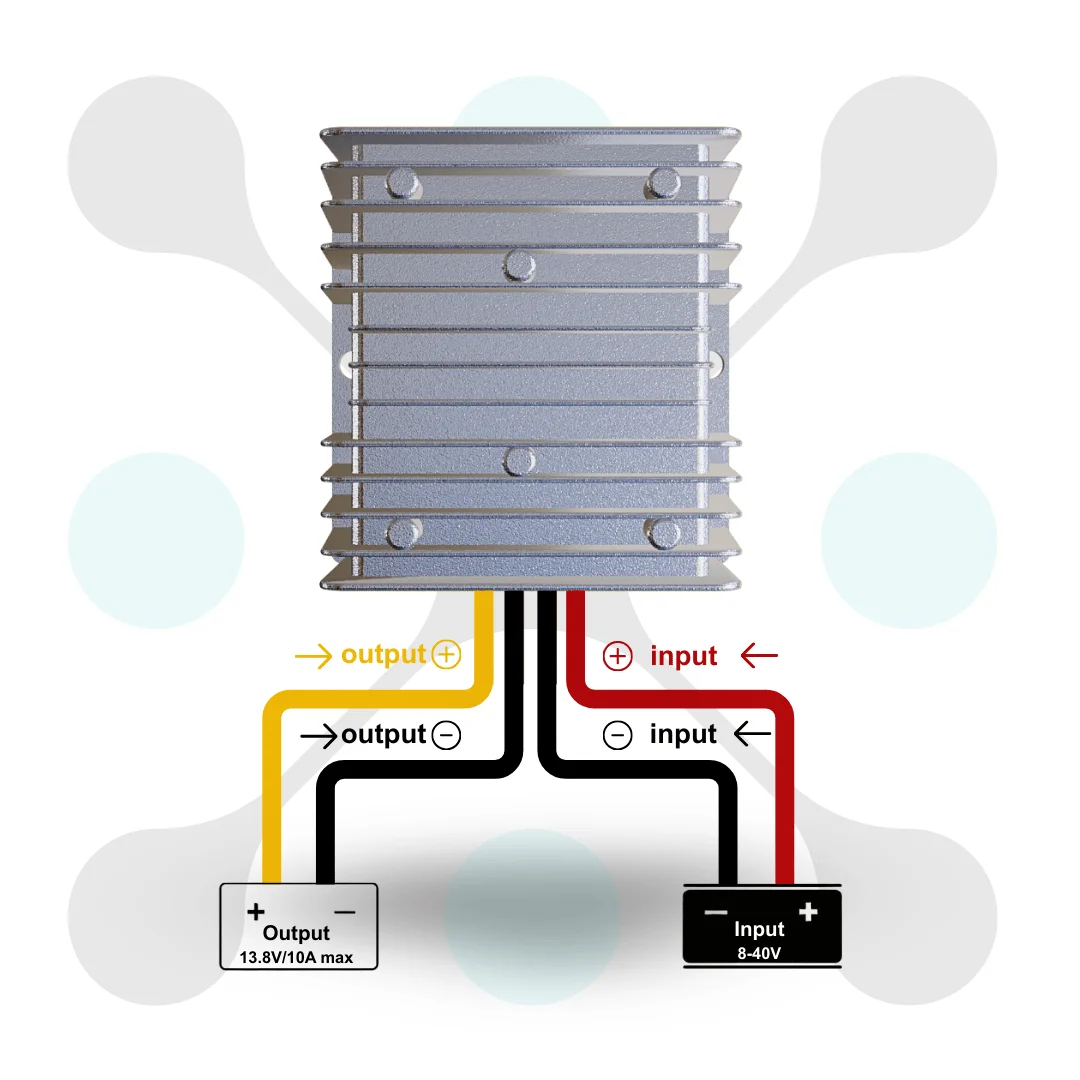

G-energy GEMUD84013810 8V-40V To 13.8V 10A Dc Dc Converter

Description

Overview of this G-energy GEMUD84013810 8V-40V To 13.8V 10A Dc Dc Converter

Introducing G-energy GEMUD84013810 8v-40v to 13.8v 10a dc dc converter at best price in India with Roboway. This dc converter with both buck and boost conversion function and operate on 8v to 40v for smooth operation in changing input condition. It also provide a stable dc power up to 138w dc power for smooth operation in medium power devices.

Features

8-40V Wide input voltage: This buck boost converter can take input voltage from 8v to 40v and convert it to a fix 13.8v.

13.8v fix output: It also provide a fix 13.8v fix stable dc output voltage with changing input and environmental condition.

Waterproof metal body: It is built with aluminum body and epoxy base for its water proofing and its use in harsh industries condition.

Datasheet

Datasheet of GEMUD84013810 8V-40V To 13.8V 10A Dc To Dc Converter Ip68 Buck Boost Converter Module

Specification

1. Input Voltage Range: 8V-40V DC

2. Rated Input Voltage: 12V 24V 36V DC

3. Output Voltage: 13.8V DC

4. Maximum Output Current: 10A

5. Maximum Output Power: 138W

6. Efficiency (Typical): Up to 94.2%

7. Voltage Regulation: ±1%

8. Load Regulation: 2%

9. Ripple & Noise: 300mV (at full load)

10. No-load Current Draw: 50mA @ 24V input

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Over temperature

    • Under voltage recovery

16. Smart Chip Protection: Yes

17. Synchronous Rectification Technology: Yes

18. Non-Isolated Converter: Yes

19. Dimensions: 74x74x32 mm

20. Weight: 120 gm

21. Cooling Method: Free air convection (no fan required)
