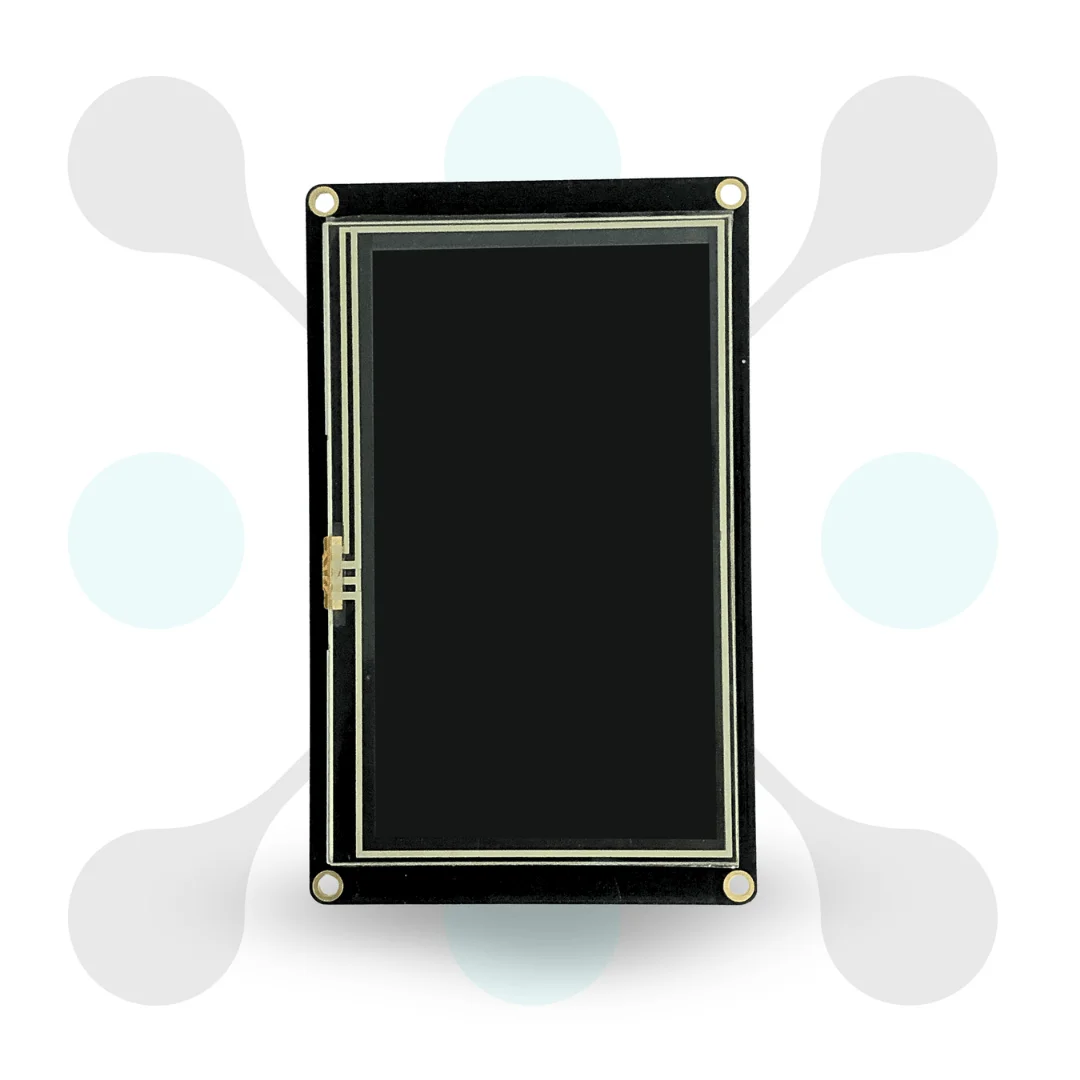

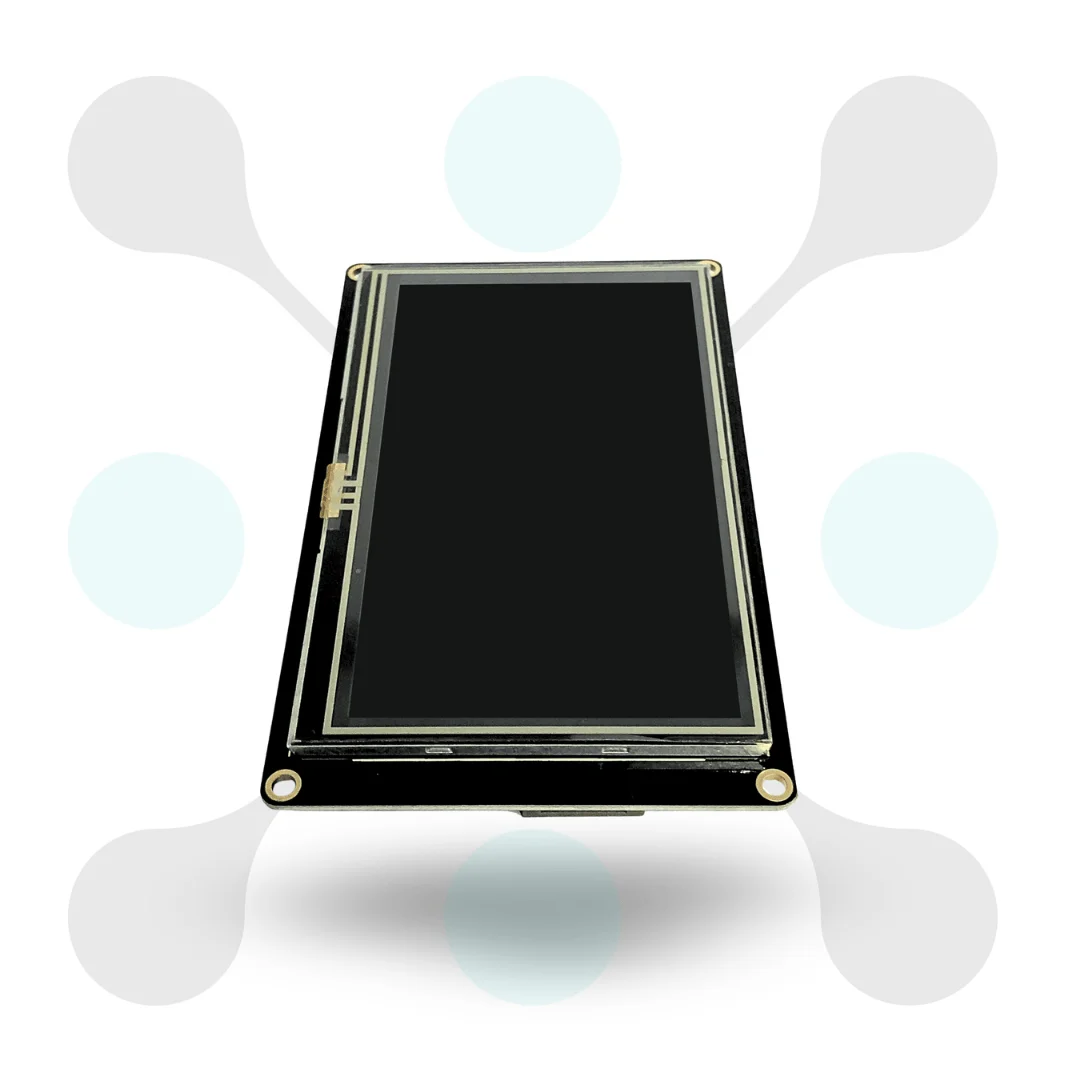

Nextion 4.3inch Enhanced NX4827K043 HMI Touch Display

SKU: RW-DIS30

₹5,104.00 ( Excluding 18% GST )

Model Nextion 4.3 inch Enhanced NX4827K043 HMI Touch Display
Display Type NX4827K043_011R (R: Resistive touchscreen)
Operating Voltage (VDC) 4.75 ~ 7
Resolution 480×272 pixels
Brightness 230nits (max)


Only 1 left in stock


Add to wishlist

For bulk and B2B enquiries kindly mail us at info@roboway.in

Tags: , , , , ,
Description

Description

Overview of this Nextion 4.3inch Enhanced NX4827K043 HMI Touch Display

Introducing the Nextion 4.3inch Enhanced NX4827K043 HMI Touch Display, a game-changer in interactive user interfaces. This cutting-edge display combines advanced features and sleek design, setting a new standard in usability. From industrial automation to consumer electronics, the Nextion 4.3inch HMI Touch Display offers versatility and performance like never before.

Experience seamless interaction with the NX4827K043 4.3inch HMI Touch Display’s responsive touch interface, perfect for intuitive navigation. Its enhanced features elevate user experience, making it ideal for a wide range of applications. With its sleek design and compact form factor, this display seamlessly integrates into any project, delivering unparalleled functionality.

Features

  1. Supports built-in RTC
  2. Supports GPIO
  3. SD Card interface: support max 32G Micro TF/SD card (FAT32 file format)
  4. Flash data storage space: 32MB
  5. EEPROM: 1024 bytes
  6. RAM: 8192 bytes
  7. Instruction buffer: 1024 bytes
  8. Color: 65K (65536) colors
  9. Resolution: 480×272 pixel
  10. Adjustable Brightness: 0~230 nit- the interval of adjustment is 1%

Specification

Model Nextion 4.3 inch Enhanced NX4827K043 HMI Touch Display
Display Type NX4827K043_011R (R: Resistive touchscreen)
Operating Voltage (VDC) 4.75 ~ 7
Max. Operating Current (mA) 250
Display Layout Size (L x W x H) mm 120x74x6 mm
Net weight (gm) 93.8
Touch Type Resistive
Colors 65K (65536)
Recommended Power Supply 5V, 1.0A, DC
Working Temperature Range (C) -20 to 70
Visual Area (L x W) mm 95.04×53.86 mm
USB Interface No
Micro-SD Card Slot Yes (FAT32 format), support maximum 32G Micro SD Card
Flash Memory 32 MB
RAM 8192 bytes
Backlight LED
Backlight Lifetime (Avg) >30,000 Hours
Display Resolution 480×272 pixels
SKU RW-DIS30
