Description

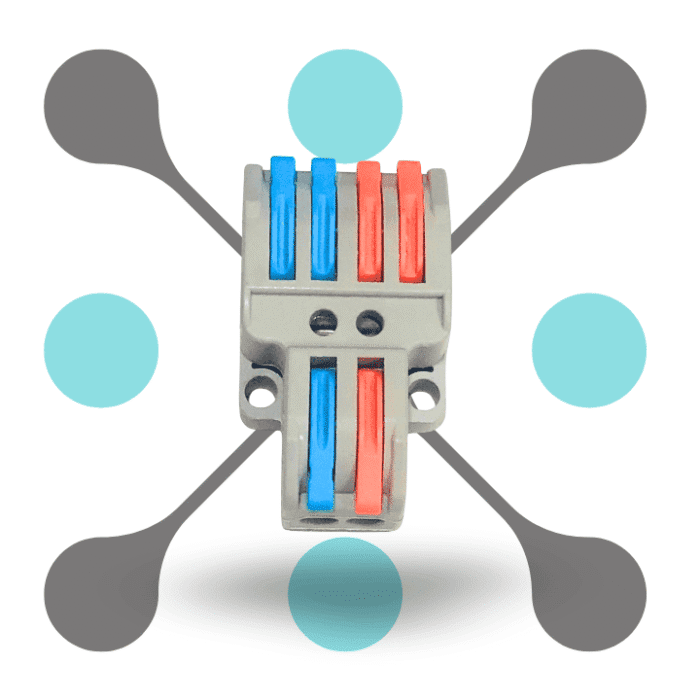

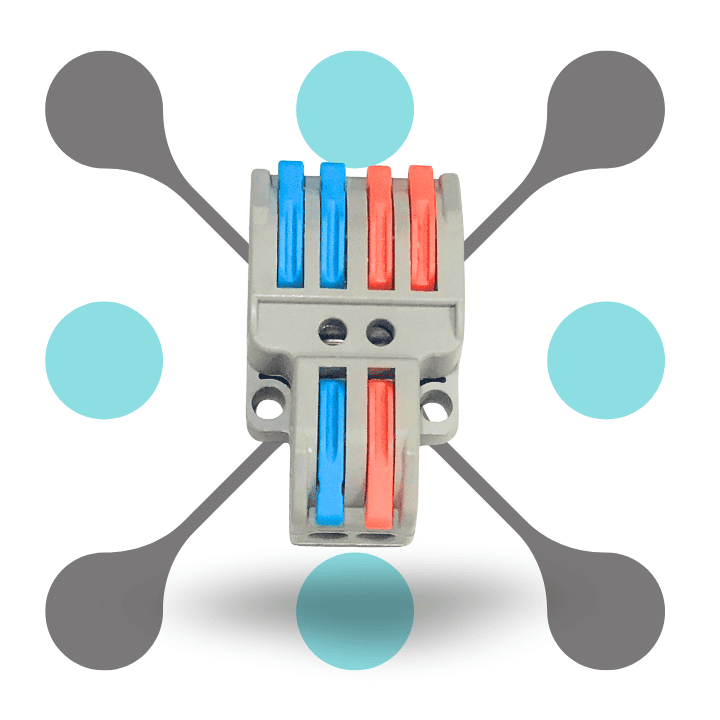

Overview of this PCT-SPL-42 Quick Wire connector with lever lock

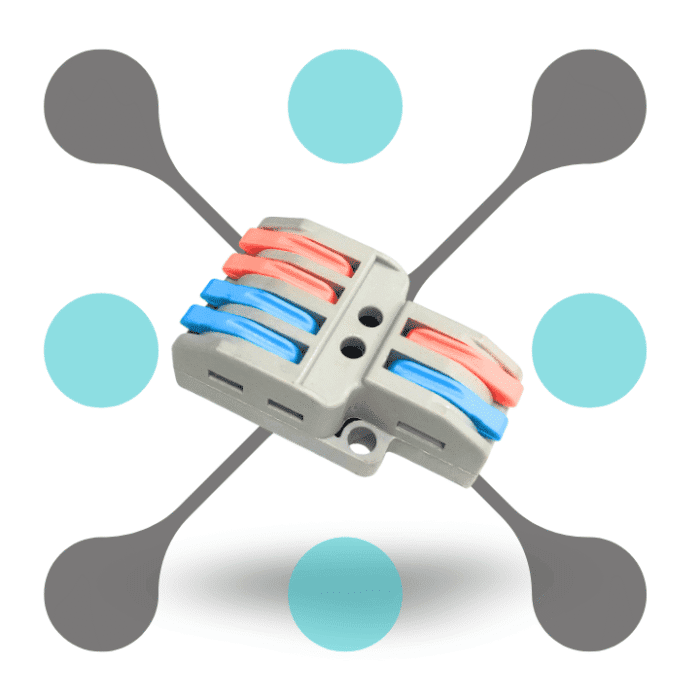

Introducing the Roboway PCT-SPL-42 Quick Wire Connector for 0.8-2.5mm wire witha versatile solution for electrical connections. This 4:2 terminal block lever wire connector is designed for wires ranging from 1.8mm to 2.5mm in diameter. Its spring lock lever mechanism ensures secure and effortless wire connections without the need for tools.

The PCT-SPL-42 Quick Wire Connector supports wires from 0.08mm to 2.5mm, accommodating various gauges. Ideal for both solid and stranded wires, it simplifies installations in electrical projects. The lever wire connector design allows for quick and reliable termination, enhancing efficiency in wiring setups.

Engineered for reliability and ease of use, the PCT-SPL-42 lever wire connector meets industry standards for quality and performance. It provides a stable connection that withstands vibrations and ensures consistent electrical conductivity. Choose the Roboway PCT-SPL-42 Quick Wire Connector for secure and hassle-free wire terminations in your applications.

Features

Efficient Wire Connection: The PCT-SPL-42 connector provides a quick and reliable way to connect wires. Its spring lock lever mechanism ensures secure and effortless wire insertion and removal.
Wide Compatibility: Designed for 1.8-2.5mm wire sizes, it accommodates various electrical applications. This versatility makes it suitable for both residential and commercial wiring needs.
Tool-Free Installation: Users can insert wires without the need for tools, simplifying installation. It saves time and effort in wiring projects.
Durable Construction: Made from high-quality materials, the connector offers durability and long-term reliability. It withstands environmental factors and ensures stable electrical connections.
Safe and Secure: The spring lock lever maintains consistent pressure on wires, reducing the risk of loose connections. It enhances safety and operational integrity in electrical installations.

Specification

Specification	Details
Model	PCT-SPL-42
Type	Quick Wire Connector Terminal Block
Number of Poles	4 poles (4 positions)
Number of Connections	2 wires per pole (2-in, 2-out per pole)
Wire Gauge	For 1.8-2.5mm² wire (13-12 AWG)
Connector Type	Spring Lever Terminal Block
Rated Voltage	400V
Rated Current per Pole	32A
Operating Temperature Range	-40°C to +85°C
Material	Housing: Polyamide (PA66), Contacts: Brass
Contact Resistance	≤ 1 mΩ
Insulation Resistance	≥ 500 MΩ
Wire Connection Method	Push-In and Lever Release
Dimensions	Approx. 20mm x 17mm x 14mm
Color	Transparent Housing with Orange Lever
Approvals	CE, RoHS
SKU	RW-993

Related product

Model	Buy Link
Solid State Relay Omron G3mb-202p 5vdc In 240VAC 2A Out	Buy now
AC 220V to 12V 450mA 5W LED Voltage Regulator Module Power Supply Bare Board	Buy now
1 Channel Optocoupler Relay High & Low Level Trigger Relay Board AC 250V/10A DC 30V/10A (5V)/(12v)/12v	Buy now
PCT-SPL-42 Quick Wire Connector 4:2 Terminal Block For 1.8-2.5mm Wire with Spring Lock Lever	Buy now
PCT-212 Universal Terminal Plug 0.08-2.5Mm Push-In Electrical Terminals for Cable Connection	Buy now
PCT-218 0.08-2.5mm 8 Pole Quick Wire Connector Terminal Block with Spring Lock Lever	Buy now
PCT-225D Guide Rail Type Quick Wire Connector 5 Terminal	Buy now
PCT-215 0.08-2.5mm 5 Pole Wire Connector Terminal Block with Spring Lock Lever	Buy now
PCT-213 3 Pole Quick Wire Connector 0.08-2.5mm Terminal Block with Spring Lock Lever	Buy now

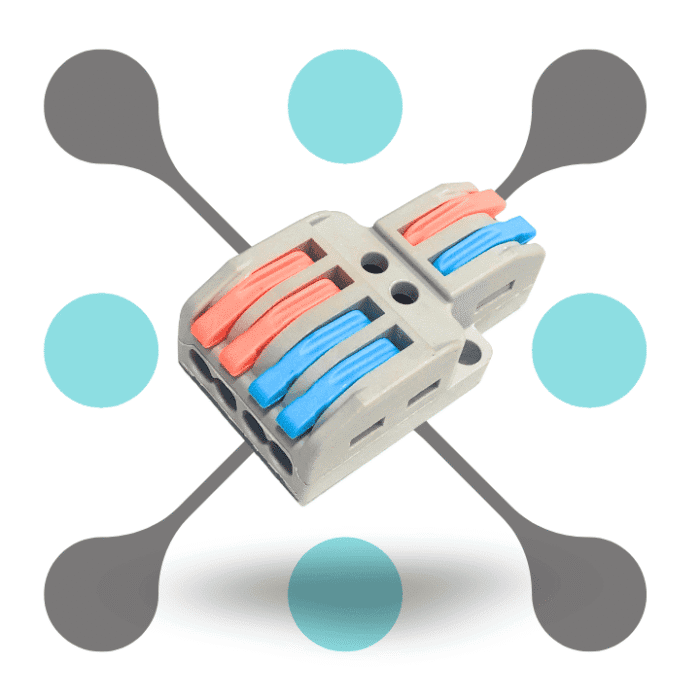

roboway pct spl 42 quick wire connector terminal block with spring lock lever

Click to enlarge

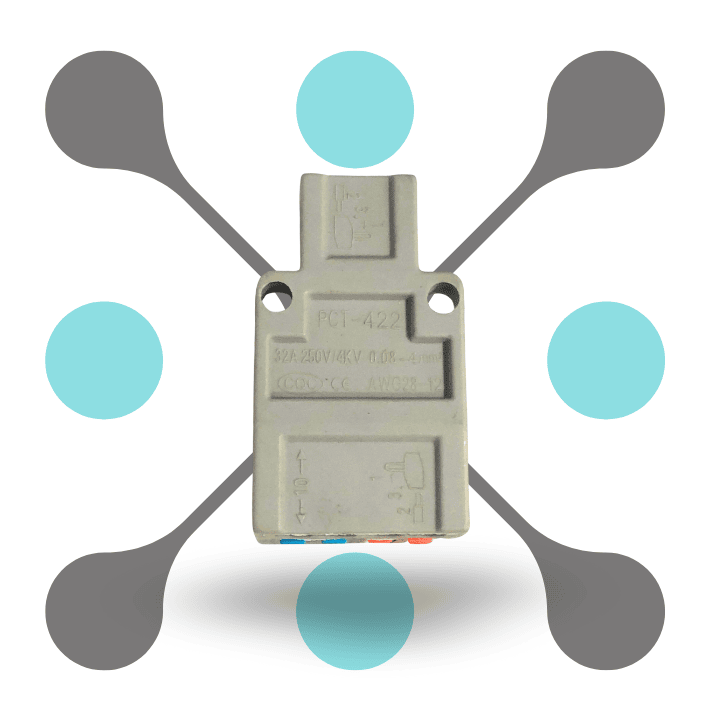

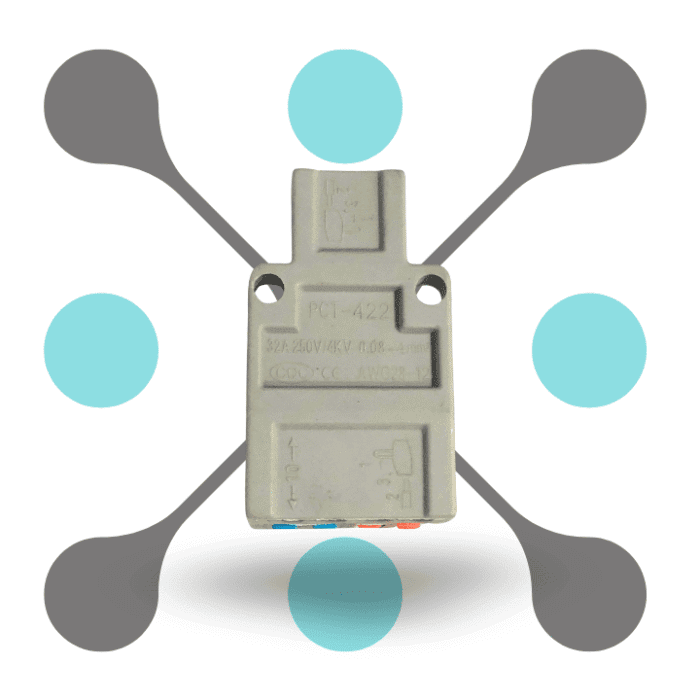

roboway wire connector for 0.08 2.5mm wire
