Overview of this sct 013 current sensor non-invasive Ac clamp sensor

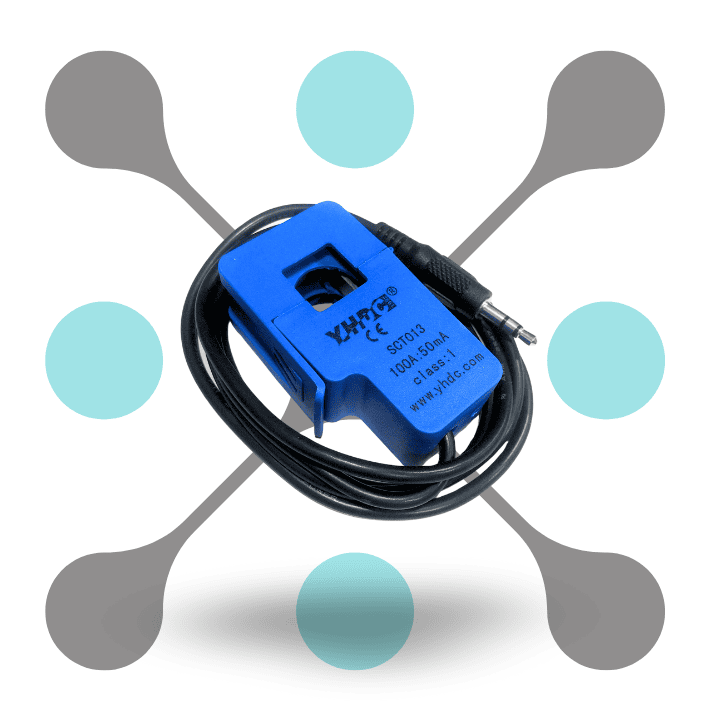

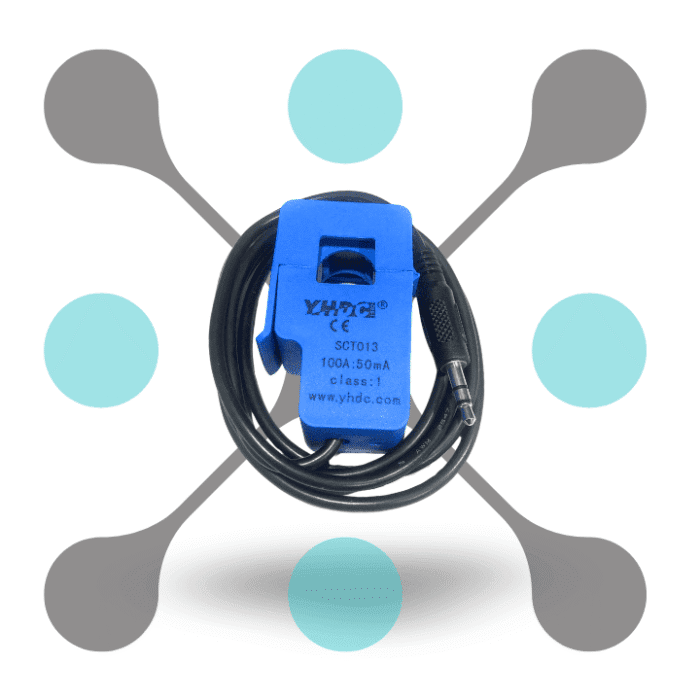

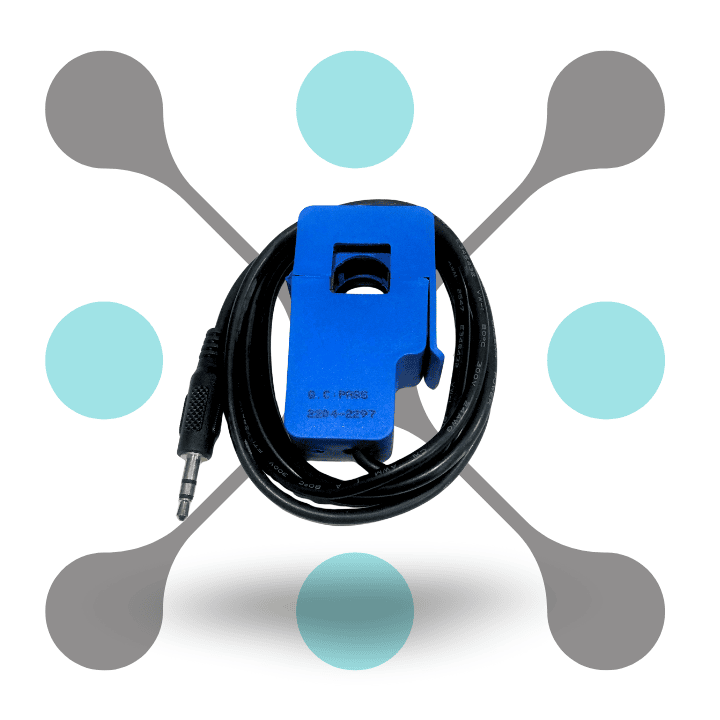

Introducing Roboway SCT 013 current sensor non-invasive clamp sensor with 6000V AC/1min dielectric strength to measure AC current up to 100 amperes. This non invasive current sensor is design as a current transformer & make it easy to measure current without the need for direct contact with the electric supply line.
With its opening size of 13 x 13mm, this clamp sensor can accurately measure currents up to 100A. And allow you to monitor and protect electric device easily. It also provide two forms of output: current and voltage, with a voltage output built in sampling resistor smooth operation.
It is also an ideal choice for various applications including lights equipment, AC motors, air compressors, monitoring, current measurement, and protection. This sensor meets also UL94-V0 flame retardant property for safety and reliability. Its non-linearity of ±3% ensures accurate measurements across a wide range of currents, from 10% to 120% of the rated input current.
Features
- High Current Handling: The SCT-013-100 Non-Invasive AC Current Sensor easily measure currents up to 100 amperes. Its robust design also allow for smooth operation even in high current applications like AC motors or air compressors.
- Output Mode: It provides two forms of output current and voltage, with a voltage output built in sampling resistor. This versatile output configuration also offer flexibility for various monitoring and measurement needs.
- Wide Input Current Range: With a non linearity of ±3% across 10%-120% of the rated input current. It ensure accurate measurement across a wide range of current level & enhance measurement reliability.
- Frequency Compatibility: The sensor support a wide frequency range from 50Hz to 150kHz. This broad frequency compatibility makes it perfect for diverse AC applications and environment.
- Compact Design: It also feature an opening size of 13 x 13mm compact and space saving form factor. This design also help for easy installation and integration into existing systems or project.
- Flame Retardant Properties: It also showcase UL94-V0 flame retardant property ensure safety and reliability in operation. This feature enhance the sensor suitability for applications where safety is important, such as current protection systems.
- Easy Connectivity: Equipped with a standard 3.5mm output plug, it simplifies connection to monitoring or measurement devices. This plug-and-play compatibility streamlines setup and usage, reducing installation time and effort.
Specification
| Specification | Details |
|---|---|
| Input Current Range | 0-100A |
| Output Mode | 0-1V @ 30mA |
| Frequency Range | 50Hz-150kHz |
| Opening Size | 13 x 13mm / 0.5″ x 0.5″ (L*W) |
| Output Plug | 3.5mm |
| Dielectric Strength | 6000V AC/1min |
| Flame Retardant Properties | UL94-V0 |
| Application | Suitable for lighting equipment, AC motors, air compressors, monitoring, current measurement, and protection |
| Non-Linearity | ±3% (10%-120% rated input current) |
| Output Type | Voltage (built-in sampling resistor) |
| SKU | RW-458 |
