Description
- Stackable design, easy to plug into the ARDUINO development board.
- Coupled with the Arduino Bluetooth Bee Bluetooth module, other Bluetooth devices can communicate Wirelessly.
- 3.3v and 5v dual power output.
- 3.3v and 5v IO compatible.
- USB2.0 protocol.

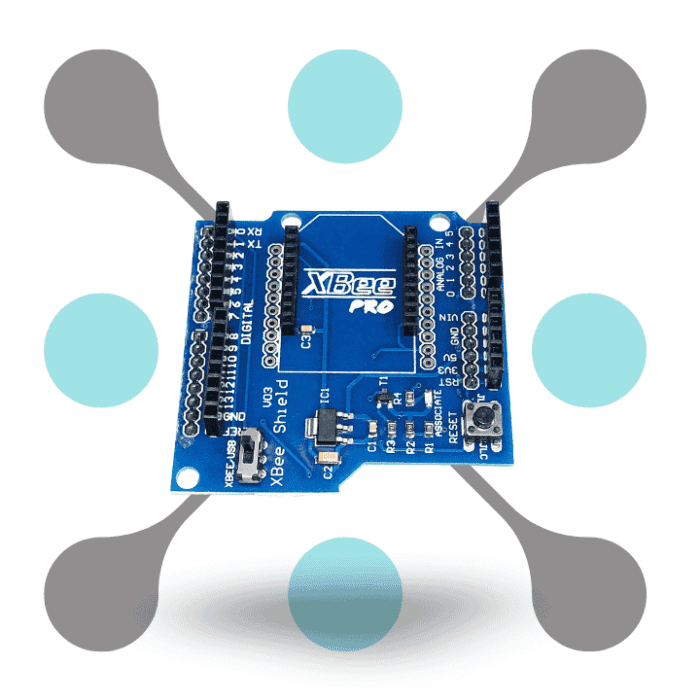

This Bluetooth XBee Shield V03 Module Wireless Control can achieve a simple two-crunodal ZigBee network, achieve wireless communication between Arduino, and allows the Arduino to wireless communicate over a modified ZigBee protocol using the popular XBee module.
It is a fully Assembled shield without the XBee module. This unit works with all XBee modules including the Series 1 and Series 2 (and 2.5), standard and Pro versions.
The XBee Shield simplifies the task of interfacing an XBee with your Arduino. This board mates directly with an Arduino Pro or USB board, and equips it with wireless communication capabilities using the popular XBee module.
Applications :
- PC via a USB cable directly connected with XBee adapters.
- Bluetooth Bee configures or uses as data transmission.
- Arduino board pro mini downloader.
SPECIFICATION :
| Model Number | XBee Shield V03 |
| Supply Voltage (V) | 3.3 ~ 5 |
| Operating Temperature (℃) | -40 ~ +85 |
| USB Protocol | 2.0 |
| Length (mm) | 57 |
| Width (mm) | 58 |
| Height (mm) | 19 |
| Weight (gm) | 15 |
| Shipment Weight | 0.018 kg |
| Shipment Dimensions | 7 × 7 × 3 cm |
