Description

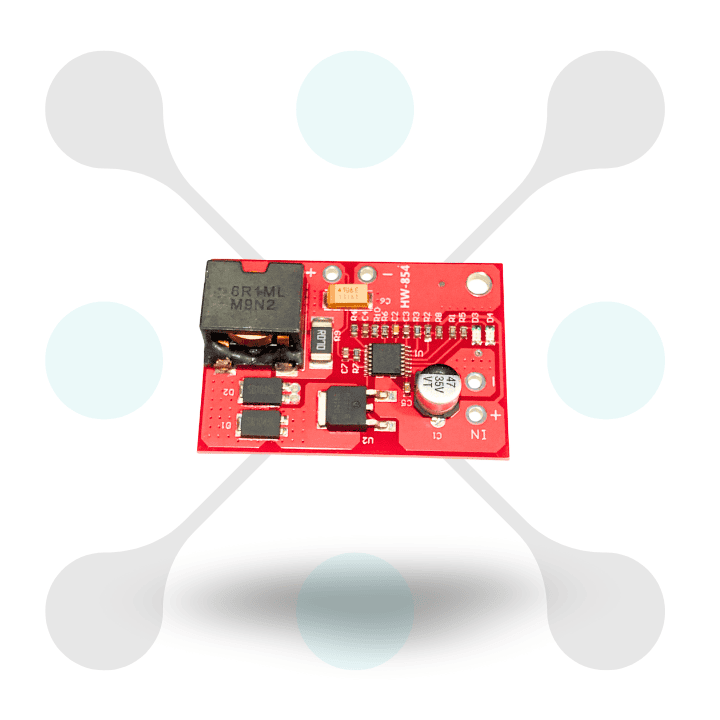

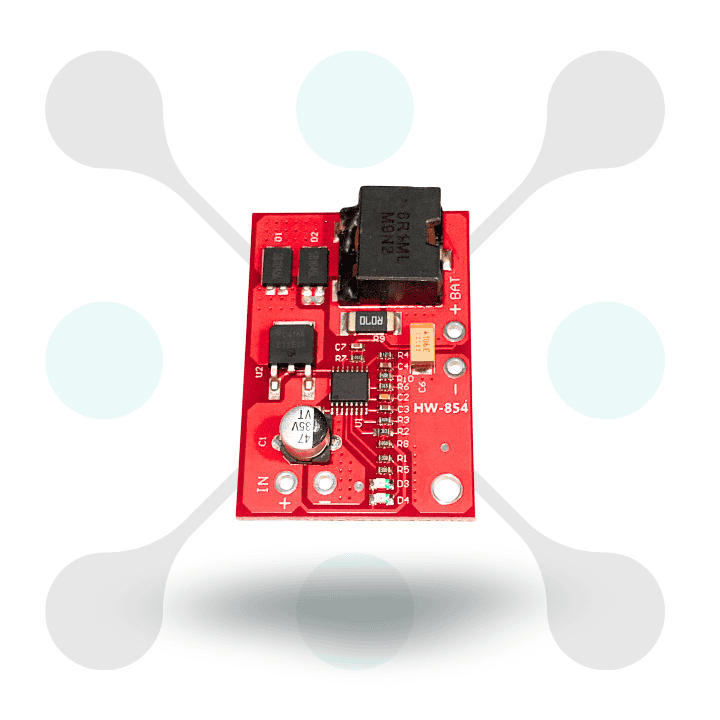

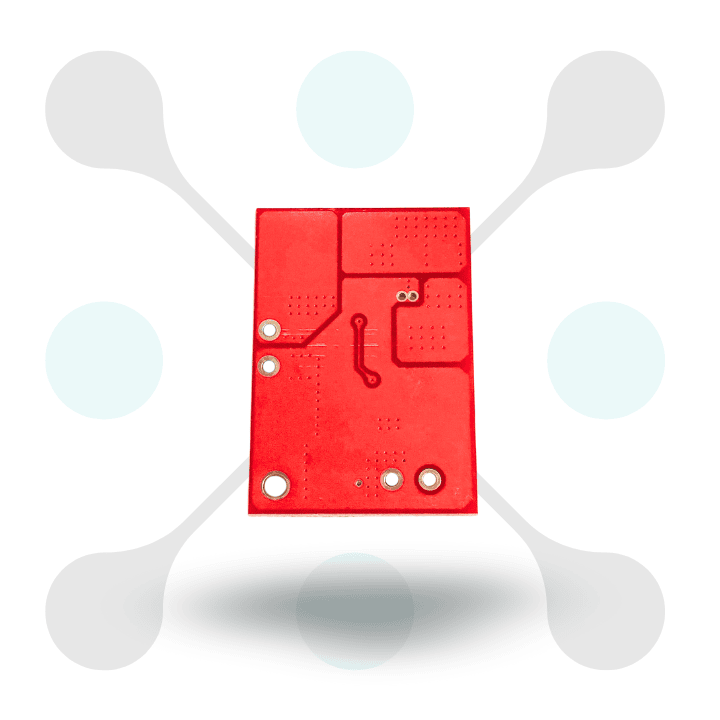

Overview of this 12V MPPT Solar Solar Charge Controller For 3S Lithium Battery
Features
- MPPT Technology for Maximum Power Output: It use MPPT to optimize solar power conversion for 3S lithium battery. It ensure efficient energy harvesting even under changing sunlight condition.
- 12V System Compatibility: It is specifically designed for 12V 3S lithium ion battery system. Provides reliable and stable charging for solar powered battery setup.
- Overcharge and Discharge Protection: Integrated protection prevents overcharging, over-discharging, and short circuits. This ensures the longevity and safety of both the battery and the controller.
- Temperature Monitoring Feature: Monitors temperature to prevent overheating during charging and discharging operations. Helps maintain optimal performance in different environmental conditions.
- Compact and Lightweight Design: Small, lightweight design makes it easy to install in portable systems. Suitable for off-grid setups where space and weight are limited.
Specification
| Specification | Details |
|---|---|
| Input Voltage Range | 12V to 18V DC (Solar Panel Input) |
| Battery Type Supported | 3S Lithium-ion (11.1V / 12.6V) |
| Max Charging Current | Up to 10A |
| Charging Voltage | 12.6V (for 3S lithium-ion battery pack) |
| MPPT Efficiency | Up to 98% |
| Overcharge Protection | Yes, 12.6V per cell pack |
| Overdischarge Protection | Yes, 9V per cell pack |
| Short Circuit Protection | Yes |
| Operating Temperature | -40°C to +85°C |
| Overcurrent Protection | Yes, with auto-recovery |
| PCB Dimensions | 60mm x 40mm |
| Communication Interface | None |
| SKU | RW-896 |
