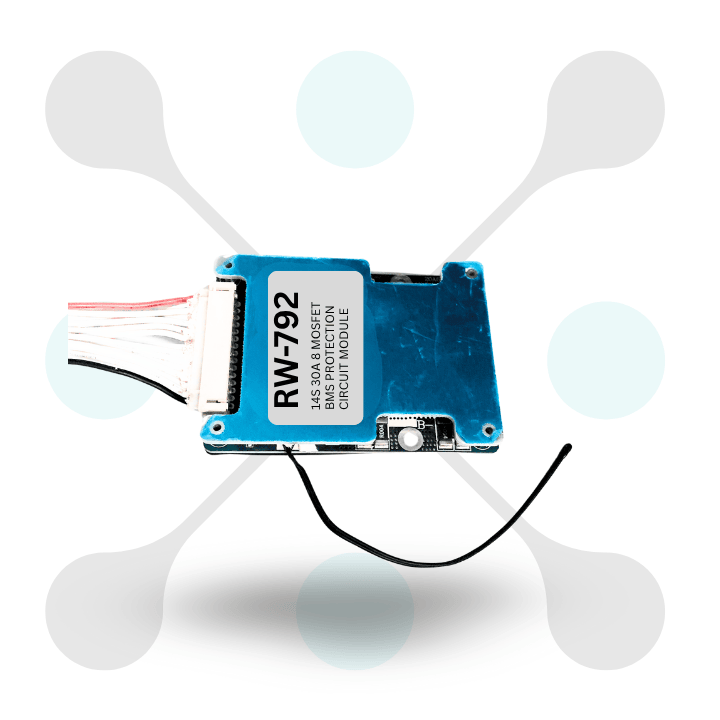

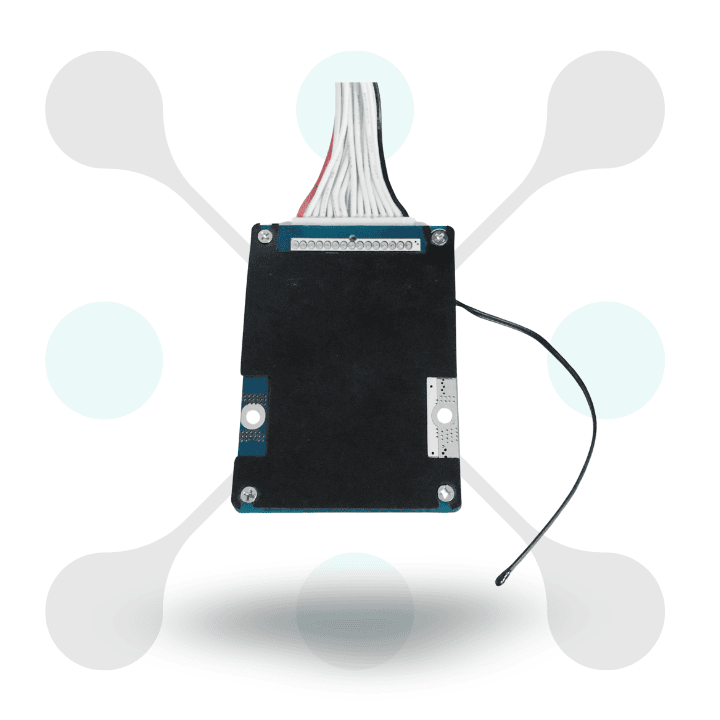

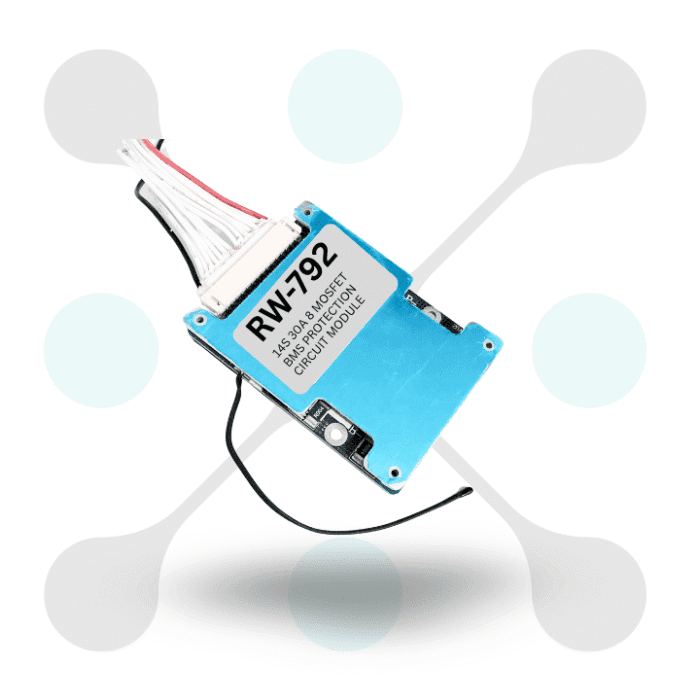

The 14S 30A 8 MOSFET BMS (Battery Management System) Protection Circuit Module is a crucial electronic component designed to oversee and safeguard the operation of lithium-ion or lithium-polymer battery packs composed of 14 series-connected cells. Below is a detailed description of this module:
Description: The 14S 30A 8 MOSFET BMS Protection Circuit Module is a sophisticated battery management system engineered for various applications, including electric vehicles (EVs), solar energy storage systems, industrial equipment, and more. Its primary purpose is to ensure the safety, performance, and longevity of your battery pack by monitoring critical parameters and implementing protective measures.
Key Features:
- 14S Configuration: Compatible with battery packs comprising 14 series-connected cells, ensuring balanced charging and discharging to prevent overcharging and overdischarging.
- 30A Continuous Discharge: Capable of handling a continuous discharge current of up to 30 amperes, making it suitable for high-power applications and systems.
- 8 MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors): Equipped with eight MOSFETs, this module efficiently manages current flow, controls charging and discharging, and safeguards against overcurrent and short-circuit conditions.
- Comprehensive Protection: Offers a range of battery protection features, including overcharge protection, overdischarge protection, overcurrent protection, short-circuit protection, and thermal protection. These safeguards protect the battery pack from damage, thermal runaway, and fire hazards.
- Cell Balancing: Monitors individual cell voltages within the battery pack and performs cell balancing to ensure that no cell is overcharged or overdischarged, thereby extending the overall battery lifespan.
- Temperature Monitoring: Integrated temperature sensors help prevent overheating and thermal stress of the battery pack, enhancing safety and reliability.
- Compact and Durable: The module is designed to be compact and rugged, capable of withstanding various environmental conditions, making it suitable for both indoor and outdoor applications.
- Easy Integration: Typically includes connectors and mounting holes for easy integration into battery packs or systems.
Applications:
- Electric vehicles (e.g., electric cars, e-bikes)
- Renewable energy storage systems
- Uninterruptible power supplies (UPS)
- Industrial machinery and equipment
- Robotics and automation systems
- High-power portable devices
- Emergency backup power solutions
The 14S 30A 8 MOSFET BMS Protection Circuit Module is a critical component for ensuring the safety, reliability, and efficient operation of lithium-ion or lithium-polymer battery packs in various applications. Its comprehensive protection features, substantial current handling capability, and advanced management functions make it a valuable asset for systems reliant on high-capacity battery solutions.
