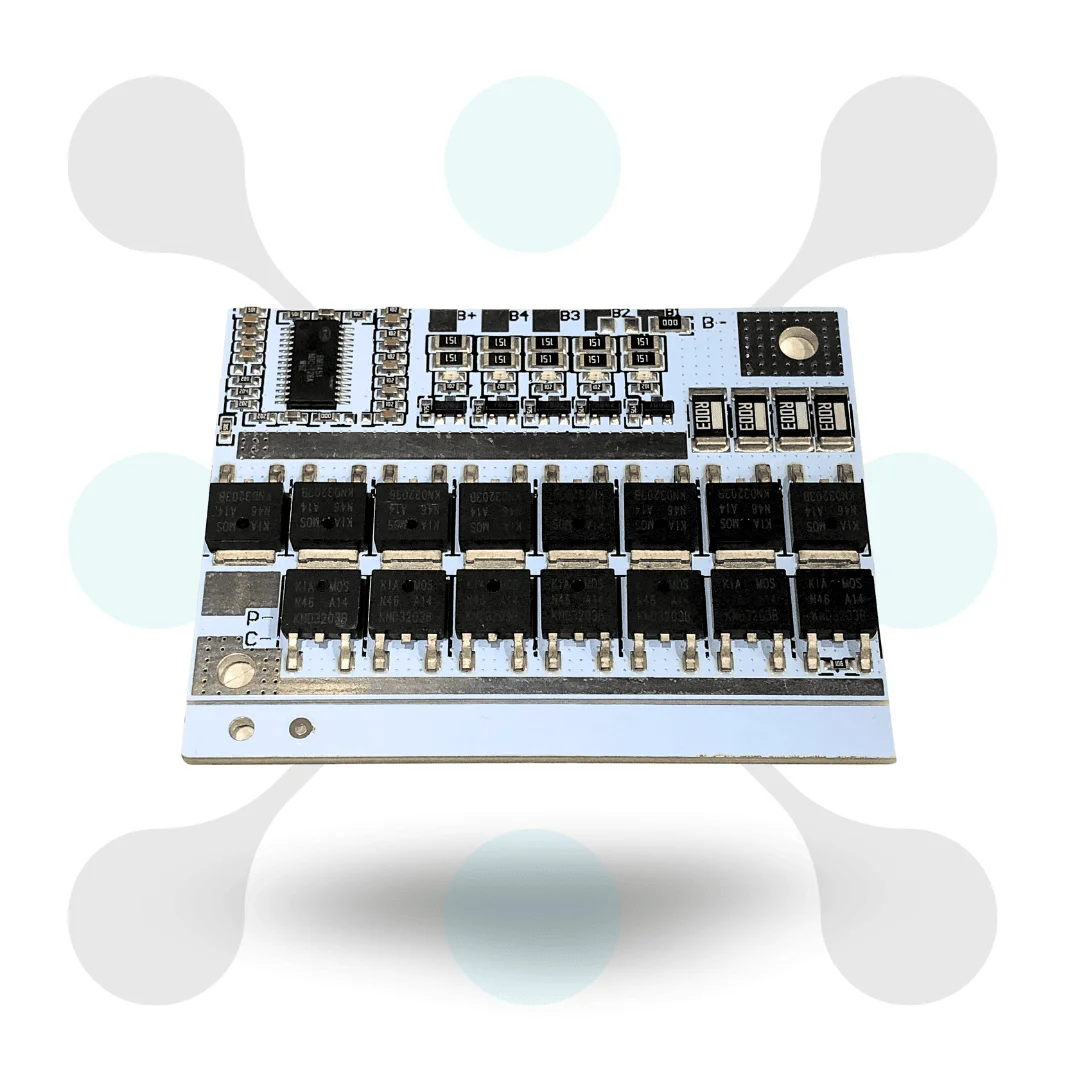

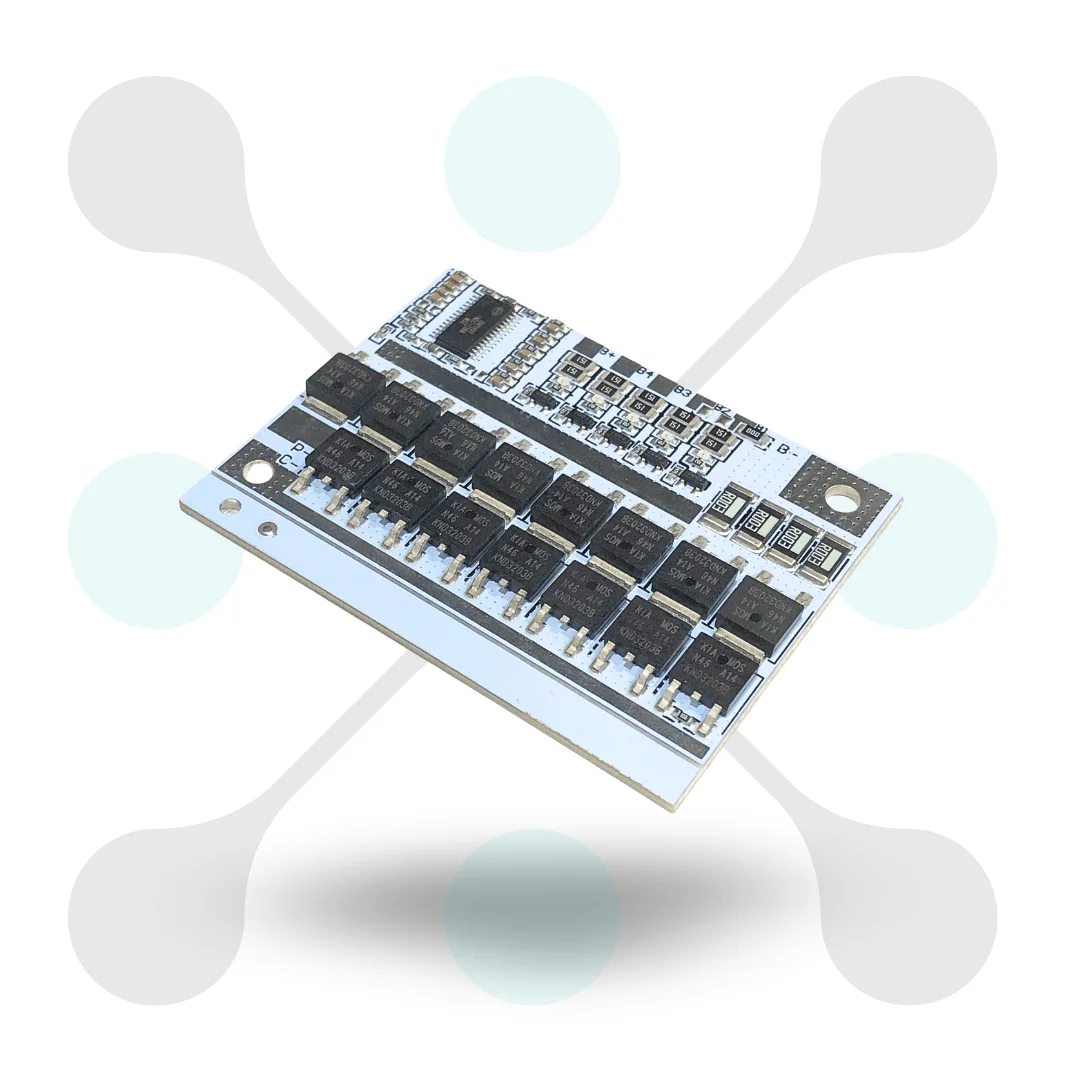

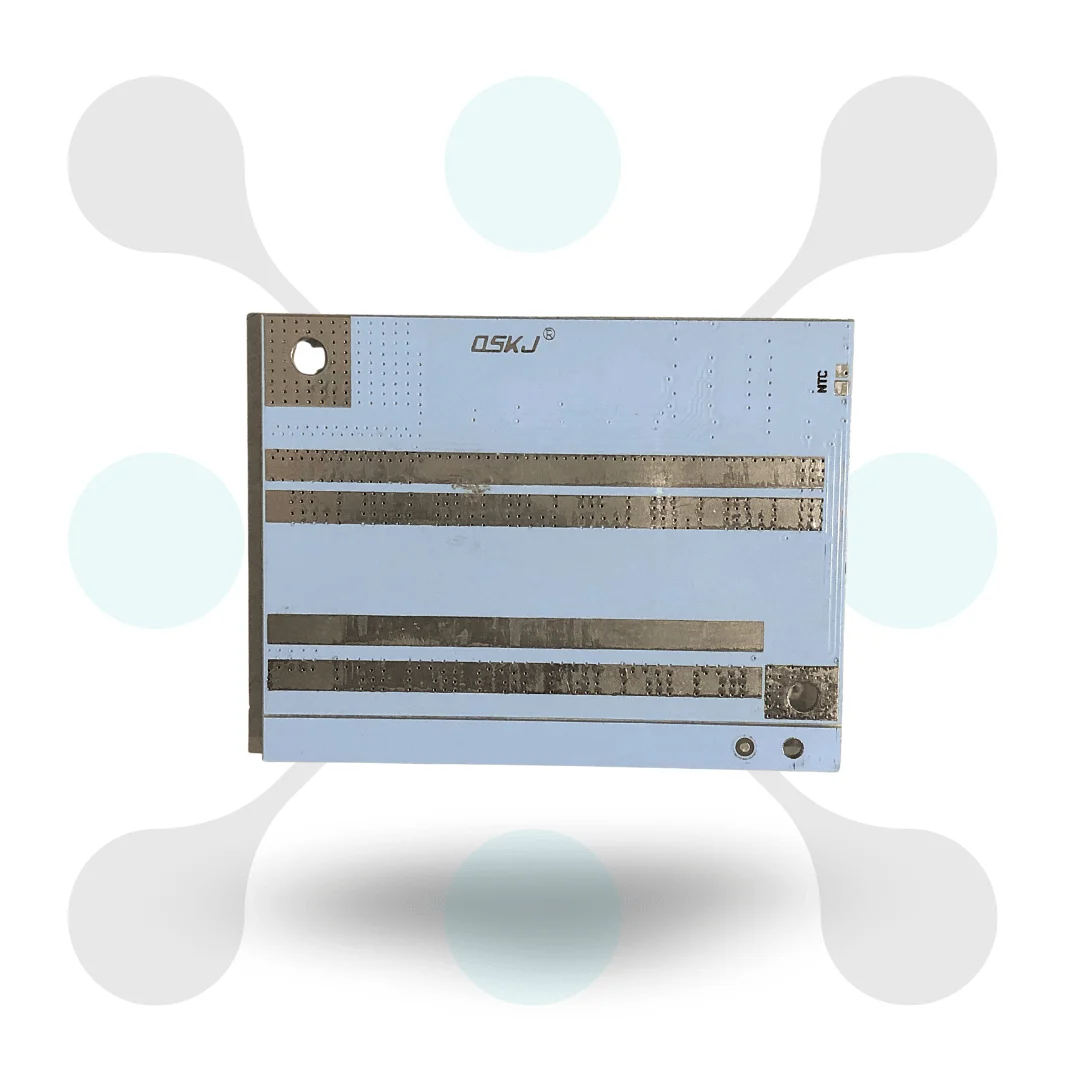

Overview of this White 4S 100A Bms For LiFePO4 Lithium Battery Protection Balance Charging
Introducing Roboway White 4S 100A BMS for LiFePO4 battery at best price in India. This 4S 100A LiFePO4 Lithium Battery Protection Balance Charging BMS ensure safe and efficient operation of your battery pack. Its advanced circuitry safeguard against overcharging & over discharging, and short circuit and help to extend the lifespan of your LiFePO4 battery. Ideal for high capacity battery, this 4S 100A LiFePO4 BMS is perfect for demanding applications.
This LiFePO4 Lithium Battery 4S 100A BMS provide stable current handling and precise balance charging. This 4S 100A LiFePO4 BMS for LiFePO4 battery is easy to install & offer robust performance for your power system. With its durable white PCB design, this BMS ensure long term reliability in various environment.
Features
- 4S Battery Configuration: This White 4S 100A Bms For LiFePO4 designed for four series connected LiFePO4 lithium battery & ensure balanced operation. It manage voltage distribution across all cells for improved performance and safety.
- 100A High Current Capacity: This 4S 100A LiFePO4 bms For lifepo4 battery support up to 100A continuous current & make it perfect for high power application. It provide stable energy output while preventing overcurrent issues.
- Balance Charging Function: Its integrated balance charging ensure equal voltage across all battery cell. This feature prolongs battery life and enhances overall system efficiency.
- Comprehensive Protection Features: Includes overcharge, over-discharge, short circuit, and temperature protections. These safeguards protect both the battery and connected devices from damage.
- Durable PCB Design: This LiFePO4 Lithium Battery 4S 100A LiFePO4 bms board is designed for durability and efficient heat dissipation. Its robust construction ensure reliable performance in harsh environment.
Specification
| Specification | Details |
|---|---|
| Battery Configuration | 4 Series (4S) |
| Nominal Voltage | 12.8V (3.2V per LiFePO4 cell) |
| Maximum Continuous Current | 100A |
| Peak Current | 120A (for a short duration) |
| Overcurrent Protection | Yes (activated when current exceeds 100A) |
| Overcharge Protection | Yes (prevents charging beyond 3.65V per cell) |
| Overdischarge Protection | Yes (prevents discharge below 2.5V per cell) |
| Balance Function | Yes (ensures balanced charging of all cells) |
| Short Circuit Protection | Yes |
| Temperature Protection | Yes (over-temperature protection enabled) |
| Cell Type Compatibility | LiFePO4 Lithium |
| Charging Voltage Range | 14.6V (full charge for 4 cells) |
| Discharge Voltage Range | 10V (minimum voltage during discharge) |
| PCB Dimensions | 120mm x 70mm |
| Waterproof Rating | No |
| SKU | RW-843 |
