Description

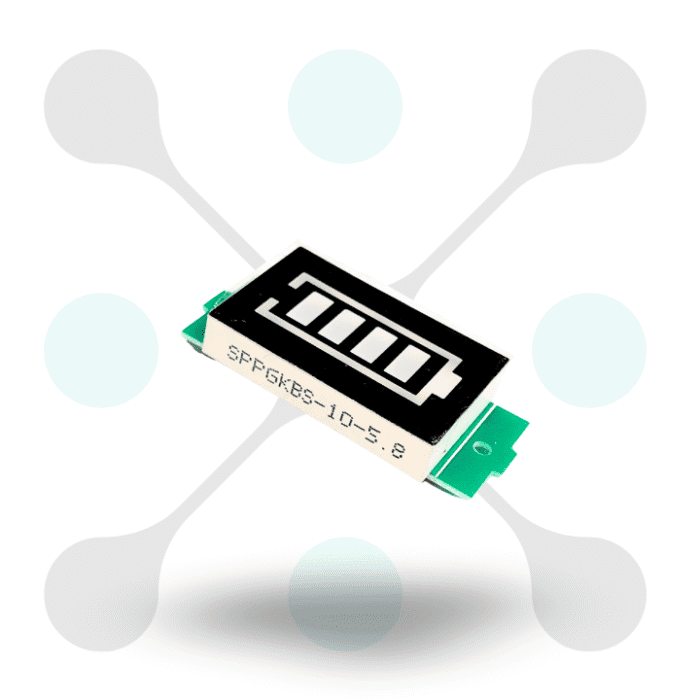

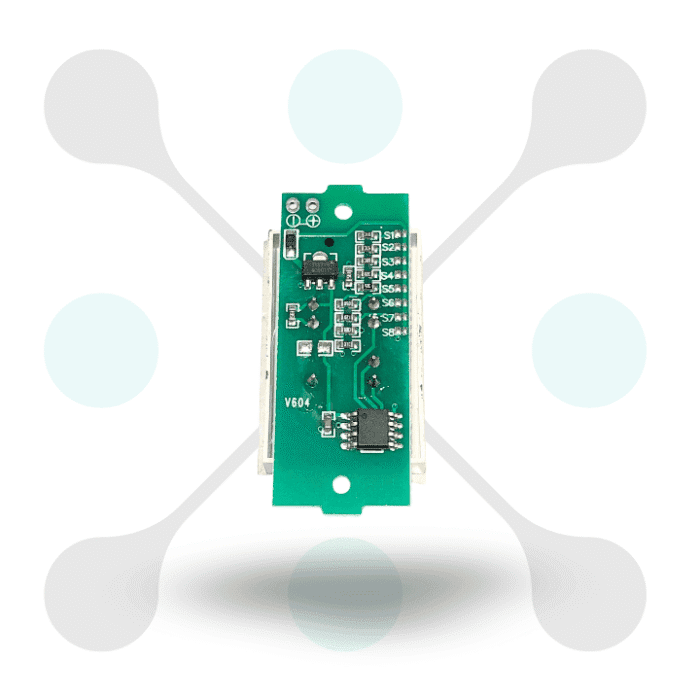

A 3S 18650 Li-po Lithium Battery Capacity Indicator Module is a device designed to monitor and display the remaining capacity of a 3-cell lithium-ion (Li-ion) or lithium-polymer (Li-po) battery pack, commonly using 18650 battery cells. Here’s a description of its features and functionality:
- Battery Configuration:
- The module is designed for 3S configuration, meaning it is intended to monitor and display the capacity of a battery pack composed of three lithium-ion or lithium-polymer cells in series.
- 18650 Battery Compatibility:
- The module is specifically designed to work with 18650 cylindrical cells, which are a popular type of rechargeable battery commonly used in various electronic devices.
- Voltage Monitoring:
- The primary function of the module is to monitor the voltage of each individual cell within the 3S battery pack. This allows users to assess the overall state of the battery pack.
- Capacity Indication:
- The module typically features LED indicators or a display to provide a visual representation of the remaining battery capacity. This can help users determine when the battery needs recharging.
- Accuracy:
- The capacity indication is usually designed to be reasonably accurate, giving users a reliable estimate of the remaining charge in the battery pack.
- Voltage Protection:
- Some modules may include voltage protection features to prevent over-discharging the battery cells, which can lead to reduced battery life and potential damage.
- Compact Design:
- The module is likely compact in size and can be easily integrated into battery packs or electronic devices where monitoring battery status is important.
- Wiring and Connections:
- The module typically has input and output terminals for connecting to the 3S battery pack and the load (device powered by the battery). Proper wiring is essential for accurate monitoring.
- Low Power Consumption:
- The module itself usually has low power consumption to minimize any impact on the overall battery life.
- Application:
- It can be used in various applications where a 3S 18650 battery pack is employed, such as portable electronic devices, DIY projects, and small electric vehicles.
- Operating Range:
- The module may have a specified operating voltage range suitable for 3S lithium-ion or lithium-polymer battery configurations.
- Status LEDs:
- LED indicators may be used to display different battery status levels, indicating when the battery is fully charged, partially charged, or requires recharging.
Before using the module, it’s important to refer to the product’s datasheet or user manual to understand its specific features, wiring instructions, and any additional capabilities it may offer. Proper installation and usage guidelines will ensure the accurate monitoring and maintenance of the 3S 18650 battery pack.
