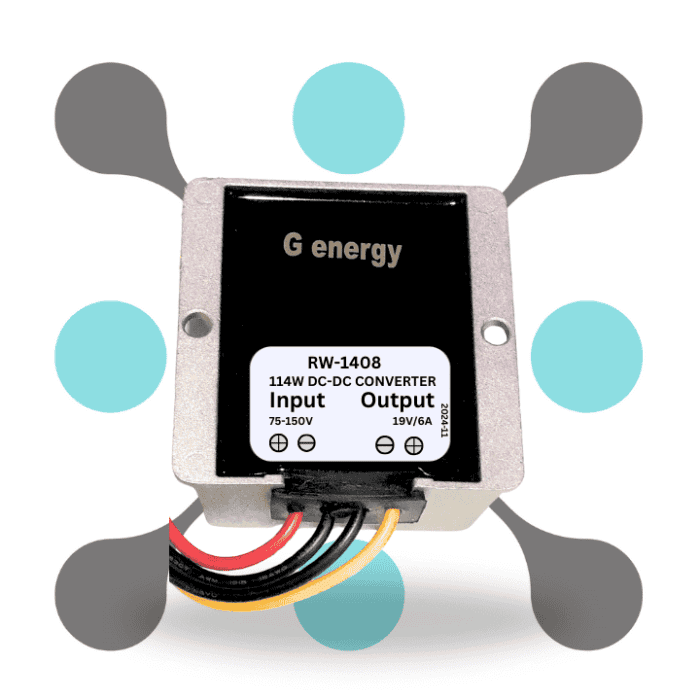

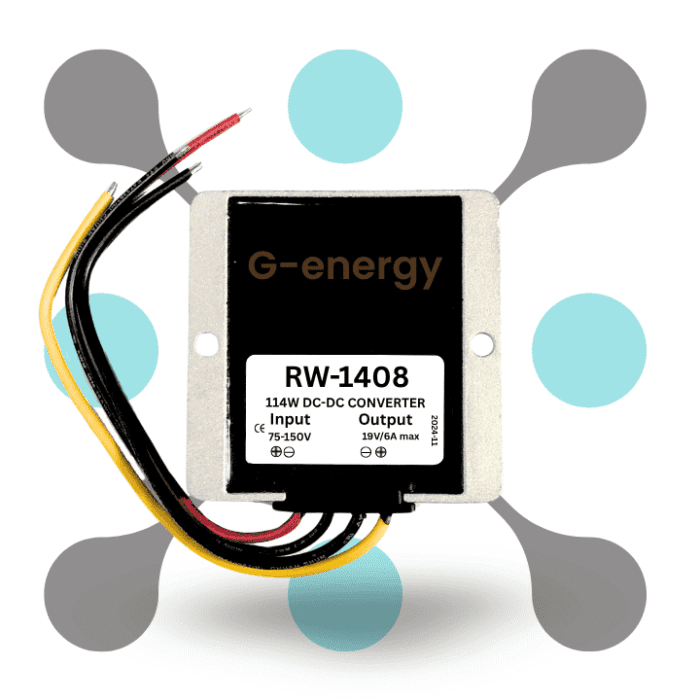

Overview of this 90V 110V To 19V 6A 114W Dc Dc Converter
Introducing G-energy DC 90V 110V to 19V 6A 114W DC-DC Converter at best price in India with Roboway. This 90V 110V to 19V 6A 114W buck converter efficiently step down high voltage to a stable 19V output. It feature an IP68 waterproof design, it ensure durability and reliability in harsh condition. This 90V 110V to 19V 114W step-down DC converter is perfect to power various electronic device and industry application.
This 90V 110V to 19V 6A dc dc converter smoothly deliver stable power with less energy loss. Its compact, rugged design support easy integration into automotive, industrial, and marine setup. Ideal for application that need stable 19V output, it provide dependable performance and high energy efficiency. Trust the G-energy dc 110V to 19V 6A 114W converter for reliable and durable voltage regulation.
Features
- Wide Input Voltage Compatibility: This 110v to 19v dc converter accept dc input from 75-145V & make it versatile for various application. Ensure reliable step down power conversion for high voltage systems with ease.
- Stable Output Power: This 90V 110V To 19V 6A ip68 dc converter provide a 19V output at 6A & deliver a maximum of 114W.
- IP68 Waterproof Rating: With its IP68 rating provide fully protection against water, dust, and harsh environmental factors.
- High Efficiency: It can deliver excellent energy conversion efficiency & reduce power loss and reducing heat generation.
- Compact and Sturdy Design: It is also built with a robust yet compact construction for easy installation in tight spaces.
Specification
Specification | Details |
---|---|
Rated Voltage | 110V/120V |
Input Voltage Range | 75-145V |
Efficiency | Up to 88% |
Output Voltage | 19V |
Maximum Output Current | 6A |
Maximum Output Power | 114W |
Voltage Regulation | ±1% |
Load Regulation | 2% |
No-Load Loss | 40mA |
Ripple Noise | 200mV (Full Load) |
Operating Temperature | -40°C to +80°C |
Storage Temperature | -40°C to +100°C |
Operating Humidity | 10% to 90% RH |
Short Circuit Protection | Yes |
Overcurrent Protection | Yes |
Dimension | 73 x 73 x 30mm |
Weight | 255 g |
Waterproof Rating | IP68 |
Model | RW-267-75-145-19-114W |
SKU | RW-267 |
Datasheet
Related Product
Input Voltage | Output Voltage | Output Amp | Output Watt |
---|---|---|---|
75V-145V | 5V | 3A | 15W |
75V-145V | 5V | 8A | 40W |
75V-145V | 5V | 20A | 100W |
75V-145V | 5V | 25A | 125W |
75V-145V | 12V | 3A | 36W |
75V-145V | 12V | 10A | 120W |
75V-145V | 12V | 15A | 180W |
75V-145V | 12V | 20A | 240W |
75V-145V | 12V | 30A | 360W |
75V-145V | 19V | 6A | 114W |
75V-145V | 19V | 13A | 247W |
75V-145V | 24V | 5A | 120W |
75V-145V | 24V | 10A | 240W |
75V-145V | 24V | 15A | 360W |
75V-145V | 24V | 20A | 480W |
75V-145V | 36V | 4A | 144W |
75V-145V | 36V | 7A | 252W |
75V-145V | 48V | 3A | 144W |
75V-145V | 48V | 5A | 240W |
75V-145V | 24V | 2A | 48W |
75V-145V | 12V | 5A | 60W |
