Overview of this 90V 110V To 12V 30A 360W Dc Dc Converter
Introducing Roboway G-energy DC 90V 110V to 12V 30A 360W Dc-Dc Converter at best price in India with Roboway. This 110V to 12V 30A 360W buck converter smoothly step down high input voltage to a reliable 12V output. Its IP68 waterproof rating ensure exceptional durability in harsh environment. This 110V to 12V 30A step down converter deliver a robust 30A output, perfect for demanding electronic application.
It is specially design for superior performance, the 75-145V to 12V 30A IP68 buck module offers excellent energy efficiency and less heat generation. Its compact and sturdy design allow for easy fit into automotive, industrial, and marine system. Ideal to power high current device and led setup, it ensure stable power delivery. Choose this G-energy DC 110V to 12V 30A 360W converter for a reliable and powerful step-down power supply solution.
Features
- Wide Input Voltage Range: This 110V To 12V dc dc converter smoothly operate with a dc input of 75-145V & offer versatile compatibility.
- High Output Power: It provide 12V at 30A with a maximum output of 360W for high demand device. Ensures stable and efficient power delivery for industrial and commercial applications.
- IP68 Waterproof Design: It is also built with an IP68 rating to fully protect against water, dust, and harsh condition. Perfect for outdoor, marine, and rugged industry environment need durable power supply.
- High Efficiency: This 90V to 12v dc converter can achieve superior energy efficiency & reduce heat and optimizing power consumption. It also ensure stable performance for extended operation without loosing reliability or safety.
- Compact and Durable Build: It is specially designed with a sturdy yet lightweight construction for easy installation and long life.
Specification
Specification | Details |
---|---|
Rated Voltage | 120V |
Input Voltage Range | 75-145V |
Efficiency | Up to 90% |
Output Voltage | 12V |
Maximum Output Current | 30A |
Maximum Output Power | 360W |
Voltage Regulation | ±1% |
Load Regulation | 2% |
No-Load Loss | 60mA |
Ripple Noise | 300mV (Full Load) |
Operating Temperature | -40°C to +80°C |
Storage Temperature | -40°C to +100°C |
Operating Humidity | 10% to 90% RH |
Short Circuit Protection | Yes |
Overcurrent Protection | Yes |

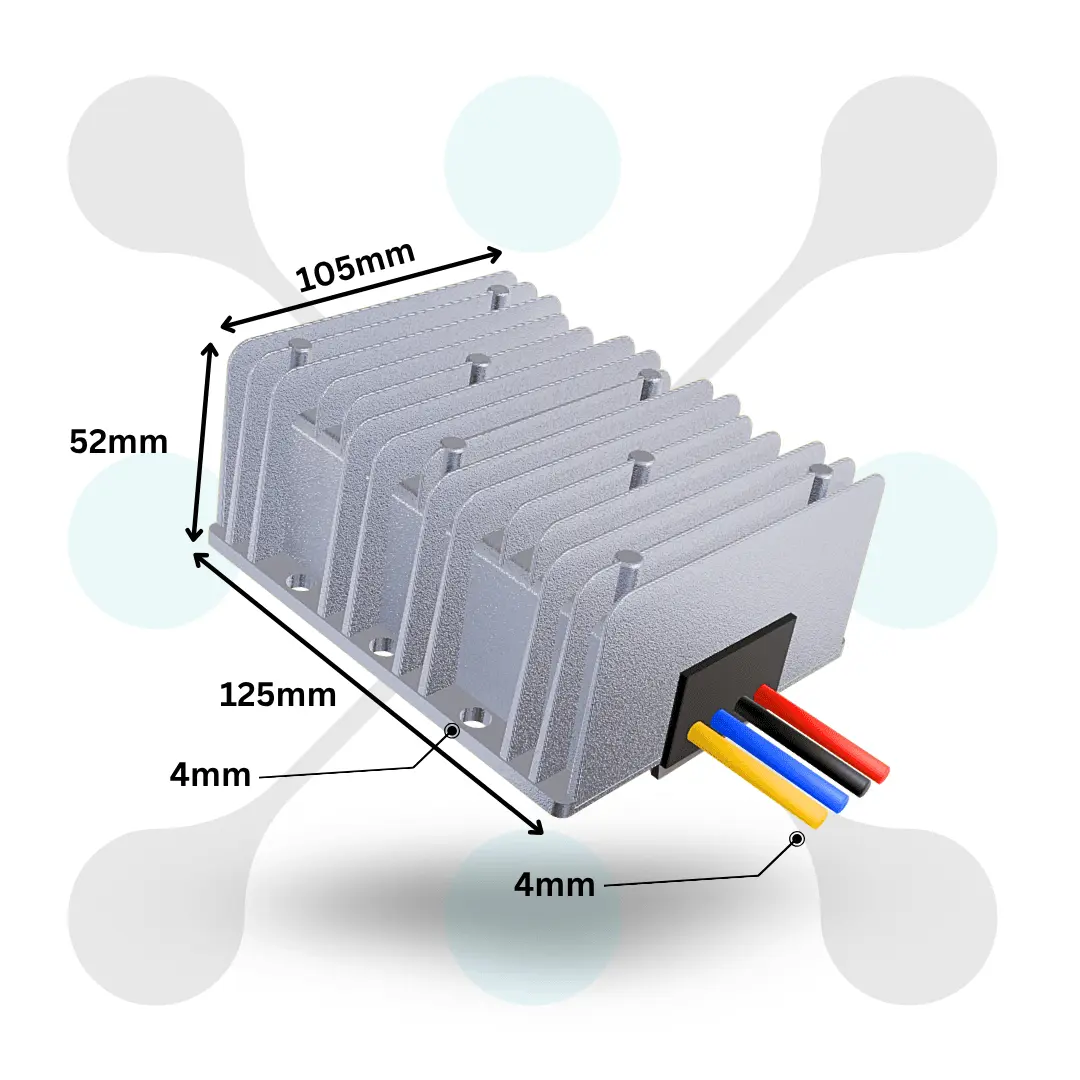

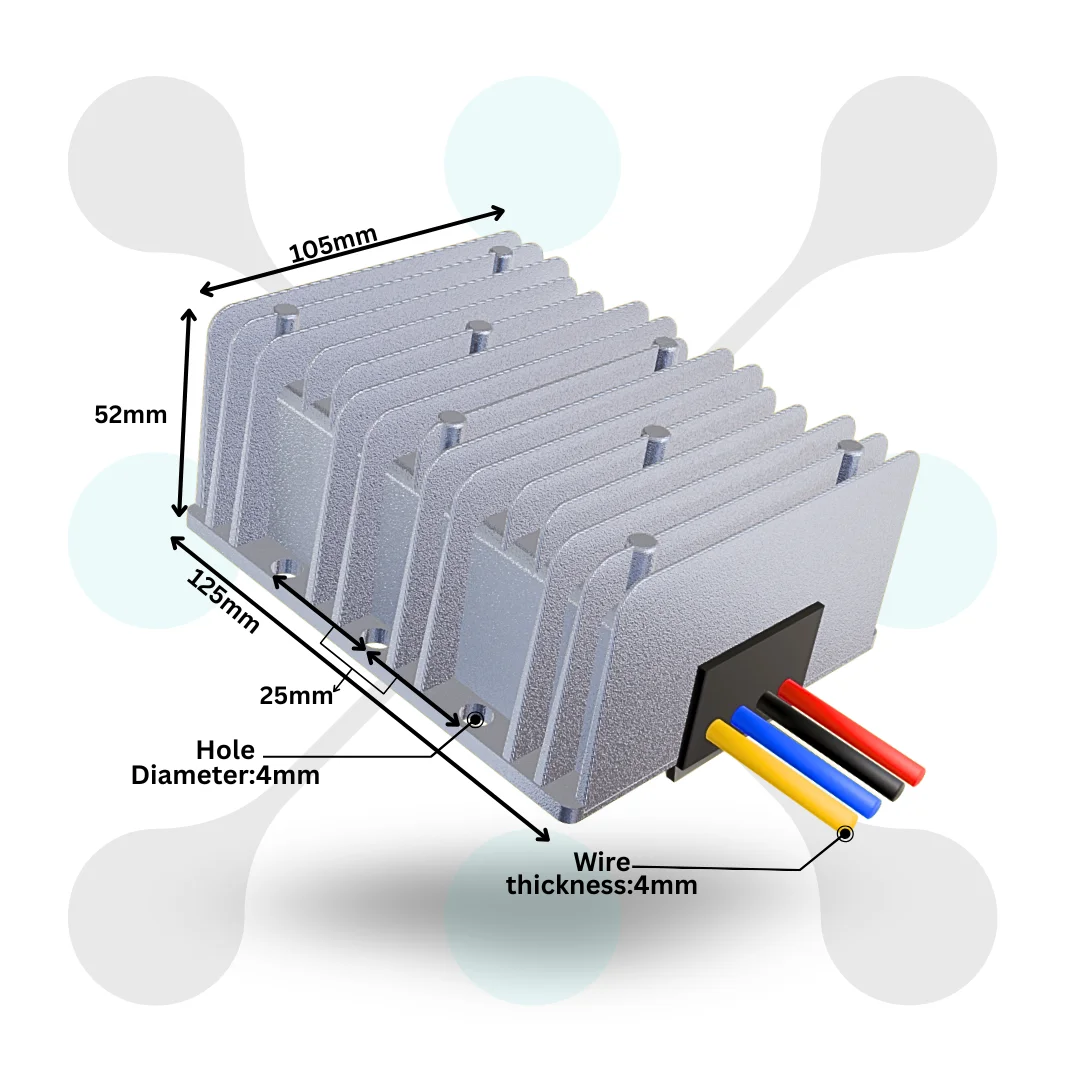

Dimension | 127*104*51mm |
Weight | 1050 g |
Waterproof Rating | IP68 |
Model | RW-1407-75-145-12-360W |
SKU | RW-1407 |
Datasheet
Click here for datasheet of g-energy dc 75-145v to 12v 30a 360w dc dc converter tp68 step down power supply module: RW-266-75-145-12-360W
Related Product
Input Voltage | Output Voltage | Output Amp | Output Watt |
---|---|---|---|
75V-145V | 5V | 3A | 15W |
75V-145V | 5V | 8A | 40W |
75V-145V | 5V | 20A | 100W |
75V-145V | 5V | 25A | 125W |
75V-145V | 12V | 3A | 36W |
75V-145V | 12V | 10A | 120W |
75V-145V | 12V | 15A | 180W |
75V-145V | 12V | 20A | 240W |
75V-145V | 12V | 30A | 360W |
75V-145V | 19V | 6A | 114W |
75V-145V | 19V | 13A | 247W |
75V-145V | 24V | 5A | 120W |
75V-145V | 24V | 10A | 240W |
75V-145V | 24V | 15A | 360W |
75V-145V | 24V | 20A | 480W |
75V-145V | 36V | 4A | 144W |
75V-145V | 36V | 7A | 252W |
75V-145V | 48V | 3A | 144W |
75V-145V | 48V | 5A | 240W |
75V-145V | 24V | 2A | 48W |
75V-145V | 12V | 5A | 60W |
