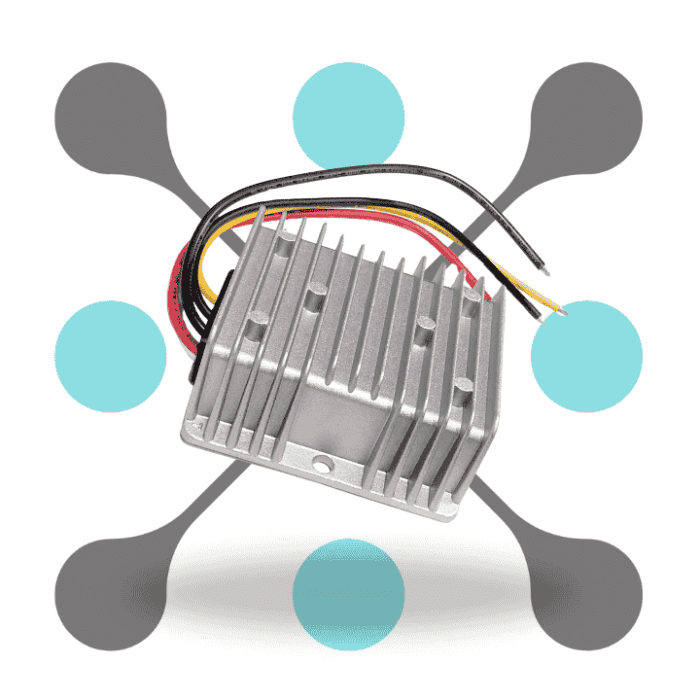

Overview of this 90V 110V To 12V 10A 120W Dc Dc Converter
Introducing Roboway DC 90V 110V to 12V 10A 120W DC-DC Converter is a powerful voltage regulation solution. This 90V 110V to 12V 10A 120W buck converter smoothly step down high voltage to a stable 12V output. Designed with an IP68 waterproof rating, it offers durability and protection for outdoor and harsh environment. This 90V 110V to 12V 120W step-down module ensure a reliable 10A output & provide stable power for various device.
Perfect for industrial, automotive, and marine application this 90V 110V to 12V 10A IP68 DC converter offer high efficiency and reliability. Its compact and robust design allow for easy fit into different setup. With its advance safety feature and a wide voltage range, this converter guarantee stable performance.
Features
- Wide Input Voltage Range: This 90v 110v to 12v 10a 120w dc dc converter support a dc input of 75-145V & provide versatility in power source. It make it perfect for a wide range of application with changing voltage need.
- High Output Power: It can deliver 12V at 10A & provide a maximum output of 120W. Ensures ample power for high demand device and equipment.
- IP68 Waterproof Rating: With its IP68 rating it is fully protected against dust and water immersion. Ideal for outdoor, marine, and rugged environment where durability is important.
- Efficient Power Conversion: It can achieves high conversion efficiency of up to 95% & reduce energy loss. Ensures reliable performance while keeping the system cool and energy efficient.
- Compact and Robust Design: This converter is designed to be both space efficient and durable. Its compact size allow easy installation in tight spaces without sacrificing robustness.
Specification
Specification | Details |
---|---|
Rated Voltage | 120V |
Input Voltage Range | 75-145V |
Efficiency | Up to 91% |
Output Voltage | 12V |
Maximum Output Current | 10A |
Maximum Output Power | 120W |
Voltage Regulation | ±1% |
Load Regulation | 2% |
No-Load Loss | 70mA |
Ripple Noise | 300mV (Full Load) |
Operating Temperature | -40°C to 80°C |
Storage Temperature | -40°C to 100°C |
Operating Humidity | 10% to 90% RH |
Short Circuit Protection | Yes |
Overcurrent Protection | Yes |
Overvoltage Protection | Yes |
Dimension | 74*73.5*30mm |
Waterproof Rating | 253 g |
Model | RW-258-75-145-12-120W |
SKU | RW-258 |
Data Sheet
Click here for datasheet of g-energy dc 75-145v to 5v 8a 40w dc dc converter ip68 step down module:Â RW-258-75-145-12-120W
Related Product
Input Voltage | Output Voltage | Output Amp | Output Watt |
---|---|---|---|
75V-145V | 5V | 3A | 15W |
75V-145V | 5V | 8A | 40W |
75V-145V | 5V | 20A | 100W |
75V-145V | 5V | 25A | 125W |
75V-145V | 12V | 3A | 36W |
75V-145V | 12V | 10A | 120W |
75V-145V | 12V | 15A | 180W |
75V-145V | 12V | 20A | 240W |
75V-145V | 12V | 30A | 360W |
75V-145V | 19V | 6A | 114W |
75V-145V | 19V | 13A | 247W |
75V-145V | 24V | 5A | 120W |
75V-145V | 24V | 10A | 240W |
75V-145V | 24V | 15A | 360W |
75V-145V | 24V | 20A | 480W |
75V-145V | 36V | 4A | 144W |
75V-145V | 36V | 7A | 252W |
75V-145V | 48V | 3A | 144W |
75V-145V | 48V | 5A | 240W |
75V-145V | 24V | 2A | 48W |
75V-145V | 12V | 5A | 60W |
